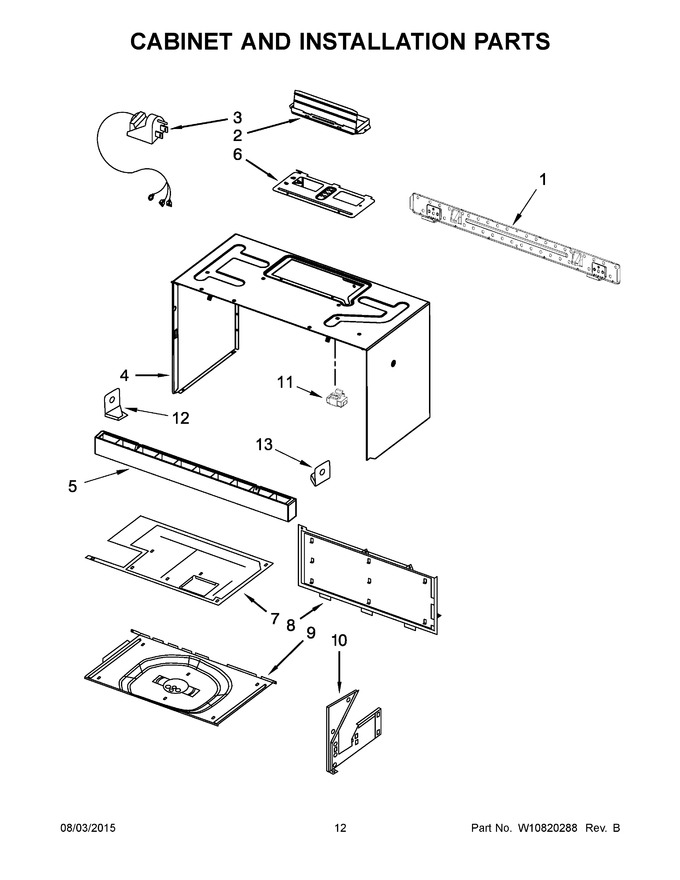

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 21.16
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
4	WPW10244765		Case, Outer (white)   (Replaces: W10244765)				$ 198.23
5	W10245217		Grille, Vent (white)				$ 90.84
6	W10210832		Cover, Hood Fan Motor				$ 6.68
7	W10248268		Assembly, Top Plate		Appelez-nous	-
8	W10248267		Assembly, Back Plate		Appelez-nous	-
9	W10249318		Assembly, Bottom Plate		Appelez-nous	-
10	W10248279		Assembly, Right Plate		Appelez-nous	-
11	W10110862		Mounting Nut		Appelez-nous	-
12	W10830163		Vent Holder, Left (black)   (Replaces: W10703285)				$ 12.18
13	W10810989		Vent Holder (right) (black)   (Replaces: W10703283)				$ 8.76
12A	W11026306		Vent Holder, Left (stainless)   (Replaces: W10703284)			Immediately	$ 6.47
13A	W10703282		Vent Holder (right) (stainless)				$ 9.44
4A	WPW10245176		Case, Outer (black)   (Replaces: W10245176)				$ 198.23
5A	W10245218		Grille, Vent (black)				$ 89.96
5B	W10245216		Grille, Vent (stainless)				$ 124.00
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 6.47
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10790922		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10553873		Miscellaneous Parts, Harness, Head Lamp And Turntable Assembly				$ 110.28
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	8205948		Miscellaneous Parts, Installation, Hardware				$ 23.06
