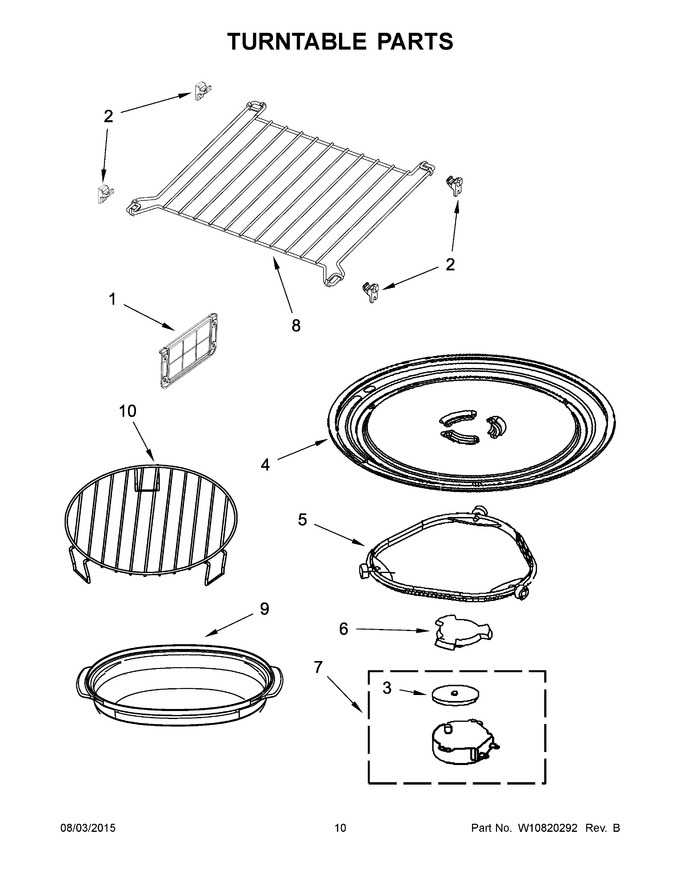

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10310700 | Cover, Inlet |
|
$ 41.25 | |||||
| 2 | W10840759 | Hook, Microwave Rack (Replaces: W10245207) |
|
- | |||||
| 3 | 8184109 | Seal, Waterproof |
|
$ 6.26 | |||||
| 4 | 4393799 | Turntable |
|
$ 82.90 | |||||
| 5 | W10444886 | Ring, Turntable |
|
$ 9.36 | |||||
| 6 | W10444887 | Driver, Turntable |
|
- | |||||
| 7 | W11661547 | Motor, Turntable (Replaces: W10466421) |
|
$ 102.33 | |||||
| 8 | W10249618 | Rack, Microwave |
|
$ 23.78 | |||||
| 9 | W10660052 | Steamer (Replaces: 8206451) |
|
Immediately | $ 25.73 | ||||
| 10 | W10440082 | Rack, Convection |
|
$ 14.16 |
