SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

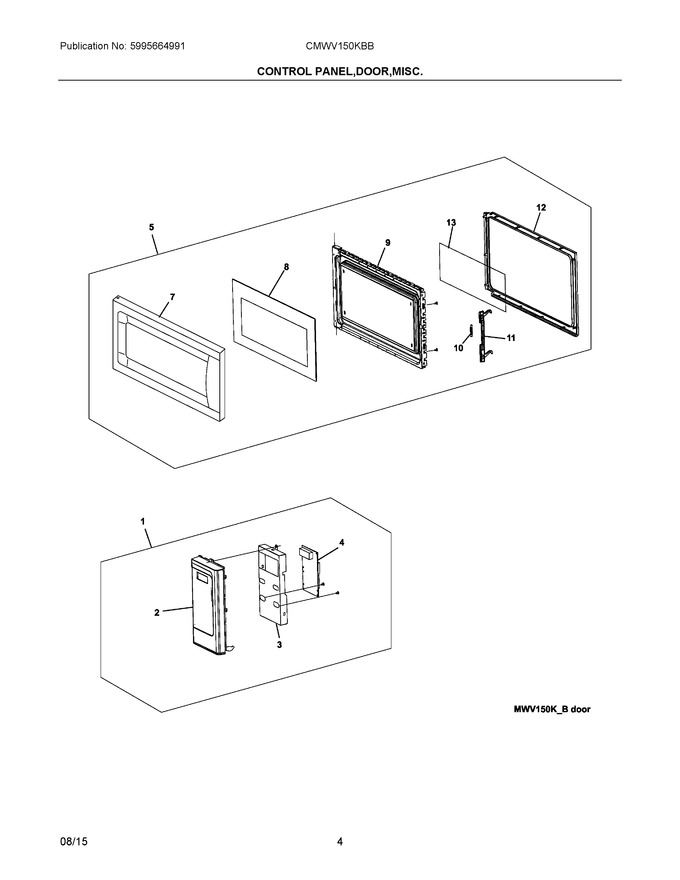

03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304503186		Control Assembly, Black		Appelez-nous	-
2	5304503191		Frame, Control Panel, Black		Appelez-nous	-
3	5304464065		Panel, Control Mount, Bracket				$ 68.04
4	5304503188		Control Board, Printed Circuit		Appelez-nous	-
5	5304472468		Door Assembly, Black				$ 433.76
7	5304472470		Panel, Outer Door, Black		Appelez-nous	-
8	5304472443		Panel, Glass, Black, Outer Door		Appelez-nous	-
9	5304472444		Panel, Inner Door, Black				$ 280.49
10	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 7.23
11	4056021605		Latch, Door   (Replaces: 5304477389)			Immediately	$ 3.69
12	5304509640		Choke Cover, Inner Door   (Replaces: 5304464071)				$ 50.61
13	5304474405		Seal, Door, Mylar Film				$ 18.44

    View Diagram in Separate Window       Print Part List
