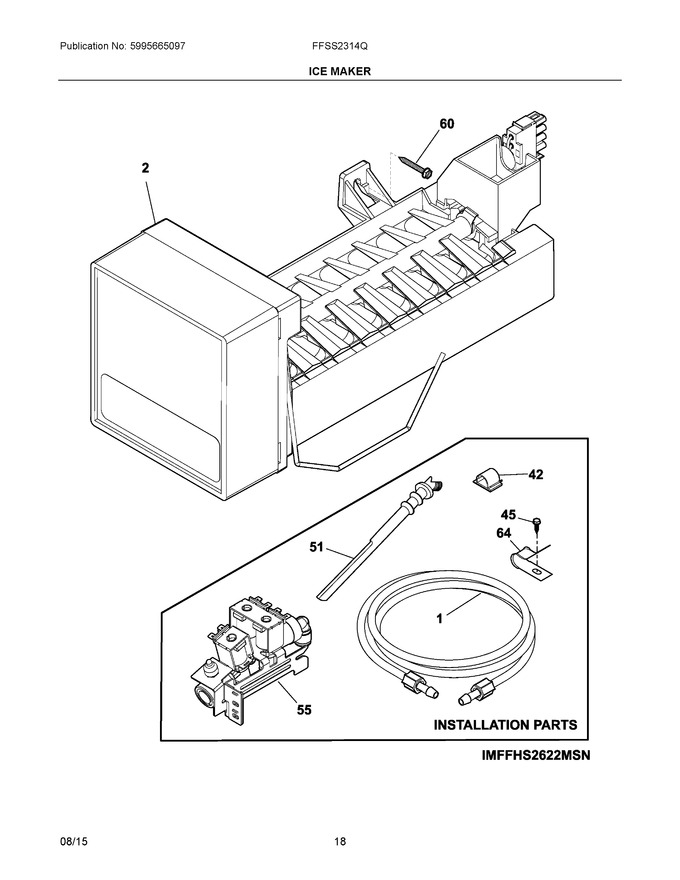

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 2 | 5303918344 | Ice Maker, Radius Cube, 115 V, No Instl Parts (Replaces: 241709801) |
|
Immediately | $ 178.39 | ||||
| 42 | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 51 | 241796405 | Tube-water Fill, Extension |
|
$ 18.43 | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 132.71 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| NIA | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 |
