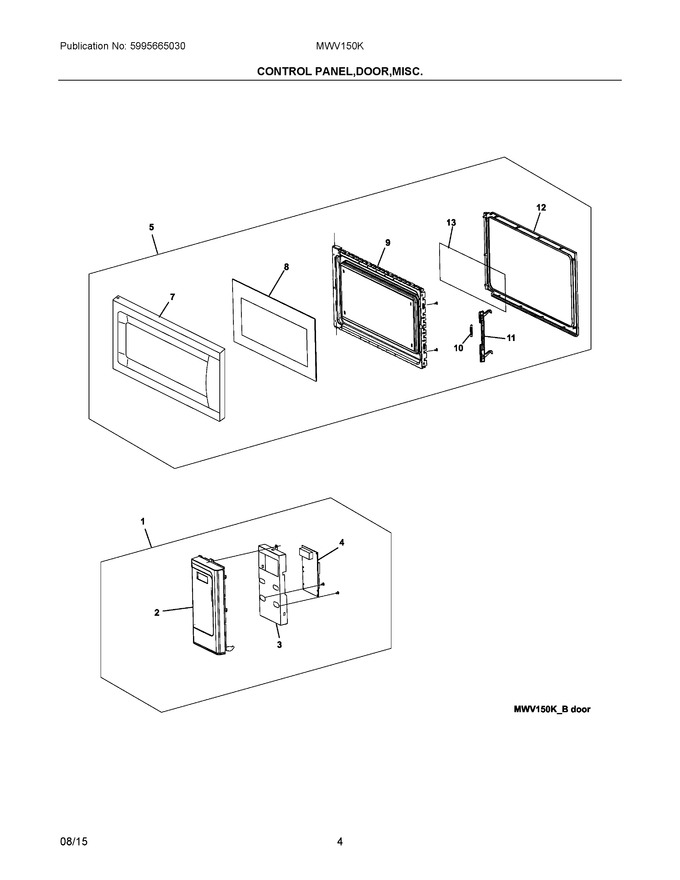

03 - Control Panel,door,misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304503185 | Control Assembly, White |
|
- | |||||
| 2 | 5304503190 | Frame, Control Panel, White |
|
- | |||||
| 3 | 5304464065 | Panel, Control Mount, Bracket |
|
$ 68.04 | |||||
| 4 | 5304503187 | Control Board, Printed Circuit |
|
$ 494.48 | |||||
| 5 | 5304472469 | Door Assembly, White |
|
$ 378.81 | |||||
| 7 | 5304472471 | Panel, Outer Door, White |
|
$ 301.98 | |||||
| 8 | 5304472443 | Panel, Glass, Black, Outer Door |
|
- | |||||
| 9 | 5304472459 | Panel, Inner Door, White |
|
$ 293.53 | |||||
| 10 | 5304521953 | Spring, Door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 11 | 4056021605 | Latch, Door (Replaces: 5304477389) |
|
Immediately | $ 3.69 | ||||
| 12 | 5304509640 | Choke Cover, Inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| 13 | 5304474405 | Seal, Door, Mylar Film |
|
$ 18.44 |
