SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

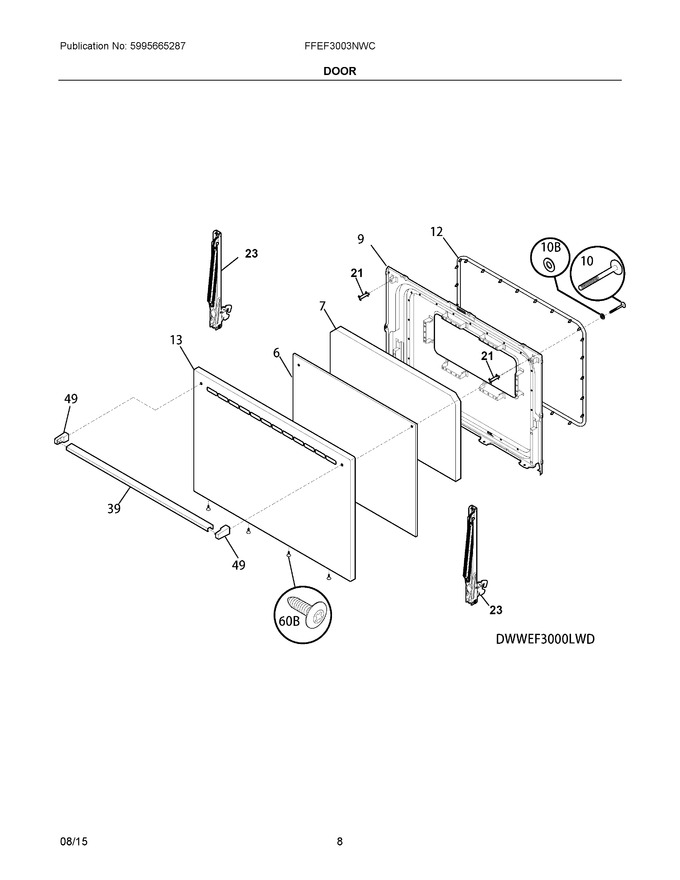

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	316546800		Shield, Knock Out		Appelez-nous	-
7	316236801		Insulation, Oven Door				$ 58.59
9	316230633		Liner, Oven Door		Appelez-nous	-
10	316001009		Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg				$ 15.17
12	316239700		Seal, Oven Door			Immediately	$ 152.43
13	316202609		Panel, Oven Door, White		Appelez-nous	-
21	316284101		Spacer, Door Handle, (2)		Appelez-nous	-
23	316575920		Hinge, Oven Door, Red		Appelez-nous	-
39	316545301		Handle, Oven Door, White   (Replaces: 316020202)			Immediately	$ 130.85
49	316137000		End Cap, Handle, White, (2)				$ 64.50
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
