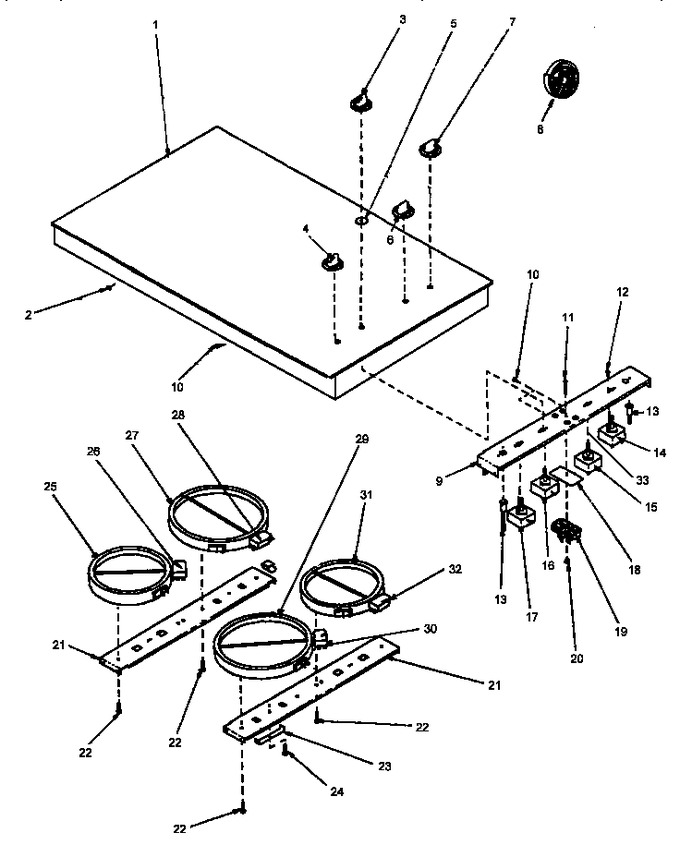

01 - Cooktop Assy


02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309911B		Assy, 36`` Frame & Glass (blk)		Appelez-nous	-
2	M027803		Washer, Lock		Appelez-nous	-
3	314488B		Knob, Infinite Sw (black)		Appelez-nous	-
4	314223B		Knob, Control (10 Pos)		Appelez-nous	-
5	Y0307427		Cover, Hole-electric				$ 7.75
6	314489B		Knob, Dual Infin Sw (black)		Appelez-nous	-
7	314223B		Knob, Control (10 Pos)		Appelez-nous	-
8	M0275045		Tape Per Roll		Appelez-nous	-
9	307423B		Bracket,cont Mtg.		Appelez-nous	-
10	12991101		Screw, Sm   (Replaces: M0210816)				$ 11.55
11	M0202521		Screw		Appelez-nous	-
12	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
13	Y0307458		Light, Indicator		Appelez-nous	-
14	Y0307429		Control, Surface		Appelez-nous	-
15	0309550		Switch, Dual Infinite		Appelez-nous	-
16	W11121639		Switch, Infinite   (Replaces: Y0309862)				$ 149.17
17	Y0307429		Control, Surface		Appelez-nous	-
18	0307444		Insulation, Ind. Light		Appelez-nous	-
19	Y0307442		Light, Indicator		Appelez-nous	-
20	M0281002		Nut A		Appelez-nous	-
21	307425B		Bracket, Element		Appelez-nous	-
22	0306212		Screw, Shoulder		Appelez-nous	-
23	Y0306683		Spring, Element		Appelez-nous	-
24	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
25	Y0306213		Heater, Radiant (1200w)		Appelez-nous	-
26	10061016		Limiter		Appelez-nous	-
27	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0306218)				$ 308.80
28	10061013		Limiter-temp, Large		Appelez-nous	-
29	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
30	10061003		Limiter, Temp, Large		Appelez-nous	-
31	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
32	10061005		Element, Haloring-1500 W		Appelez-nous	-
33	Y0041991		Switch Gasket Xet-490		Appelez-nous	-
NI	0307428		Screw, Machine		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
