SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

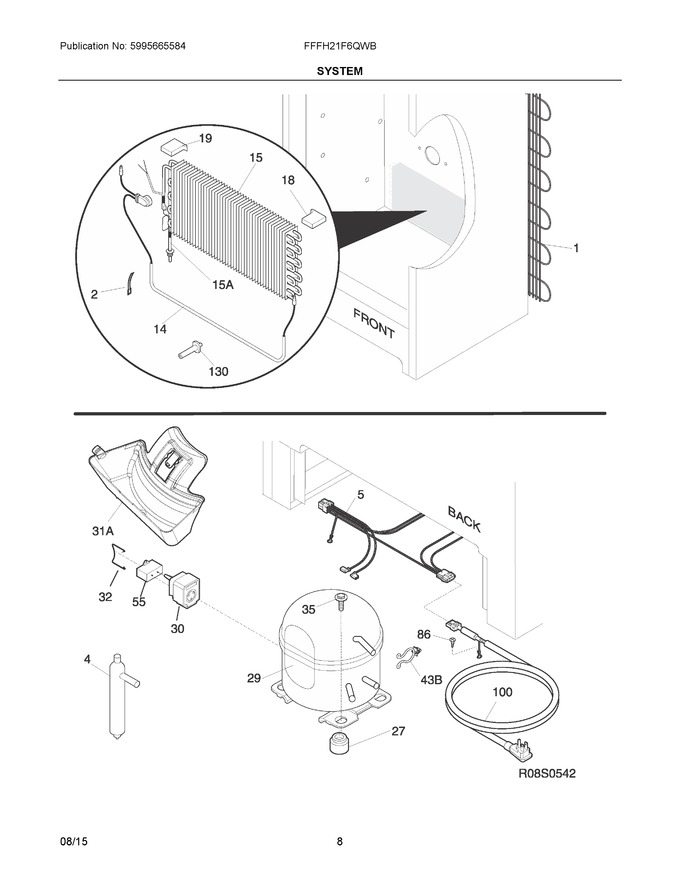

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 31.67
5	5304494360		Harness, Main				$ 47.48
14	5304496284		Heater, Defrost, W/thermostat			Immediately	$ 110.30
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
29	240550948		Compressor   (Replaces: 297414054)			Immediately	$ 292.50
30	297259515		Controller, Compressor   (Replaces: 297259502)				$ 74.42
32	216954300		Clip, Controller				$ 17.01
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286803		Capacitor-run			Immediately	$ 28.77
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger, Suct/cap Tube			Immediately	$ 91.82
31A	297217002		Pan-drain   (Replaces: 297217001)				$ 34.25
43B	297315800		Clip, Wire				$ 10.13
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
