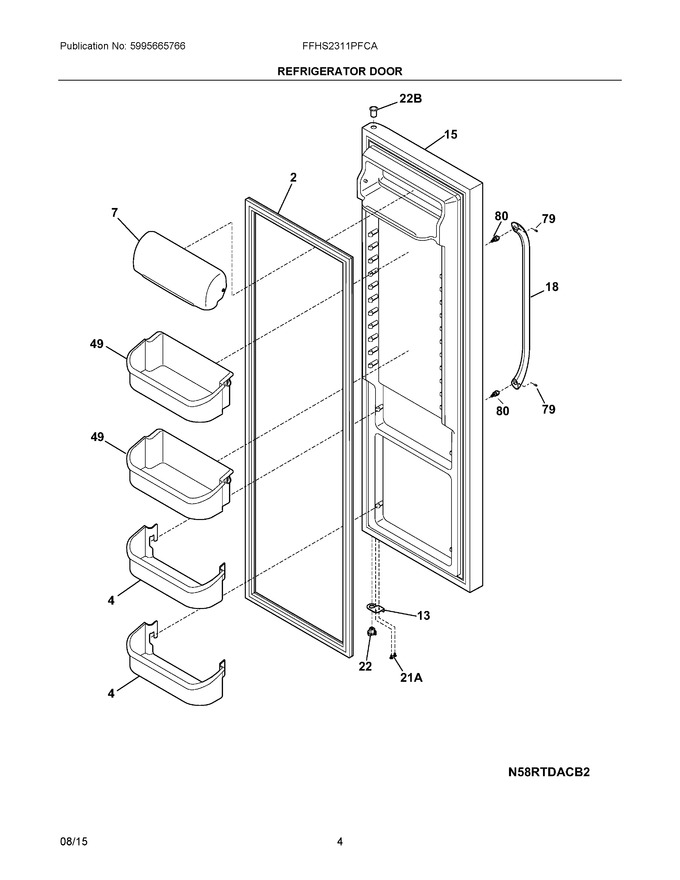

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Black, Magnetic (Replaces: 241786007) |
|
Immediately | $ 94.66 | ||||
| 4 | 240363701 | Bin-door, 2-liter |
|
Immediately | $ 59.42 | ||||
| 7 | 240338313 | Door, Dairy, Clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 13 | 240581905 | Door Stop, Black, Ref |
|
$ 60.25 | |||||
| 15 | 807460105 | Refrigerator Door, Complete, Stainless |
|
- | |||||
| 18 | 242059301 | Handle-door, Stainless, W/set Screws |
|
$ 219.03 | |||||
| 22 | 242015302 | Bearing-hinge(ref), Black, Closer |
|
$ 10.62 | |||||
| 49 | 240324501 | Bin-door, Gallon |
|
Immediately | $ 69.06 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 240328404 | Bearing-hinge, Black, Upper |
|
$ 22.87 |
