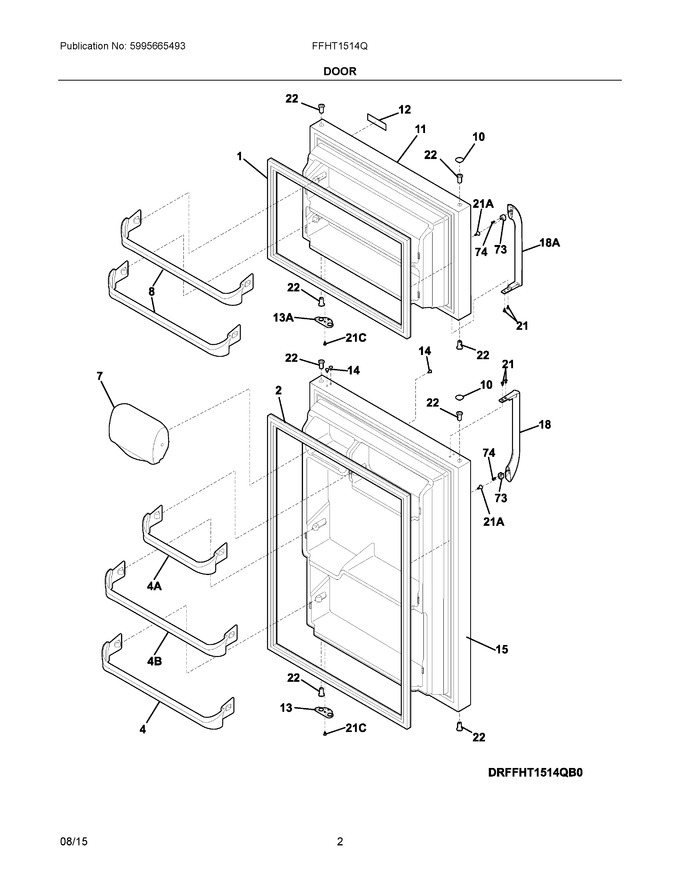

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193207 | Gasket, Frzr Door, Black, Magnetic |
|
Immediately | $ 184.42 | ||||
| 2 | 242193208 | Gasket, Frzr Door, Black, Magnetic |
|
Immediately | $ 184.42 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 10 | 240381303 | Plug-button, Black, Hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 807460019 | Freezer Door, Complete, Black |
|
$ 488.27 | |||||
| 12 | 242016301 | Nameplate, Frigidaire |
|
$ 4.26 | |||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494003 | Plug-button, Black |
|
$ 18.20 | |||||
| 15 | 807460120 | Refrigerator Door, Complete, Black |
|
- | |||||
| 18 | 5304506471 | Handle-door, Black, Refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 95.56 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 73 | 218396701 | Block-handle Mtg, Dovetail |
|
- | |||||
| 74 | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 18A | 5304506471 | Handle-door, Black, Refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 95.56 | ||||
| 21A | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4A | 240535301 | Rack-door, 12.03 |
|
Immediately | $ 41.12 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 30.34 |
