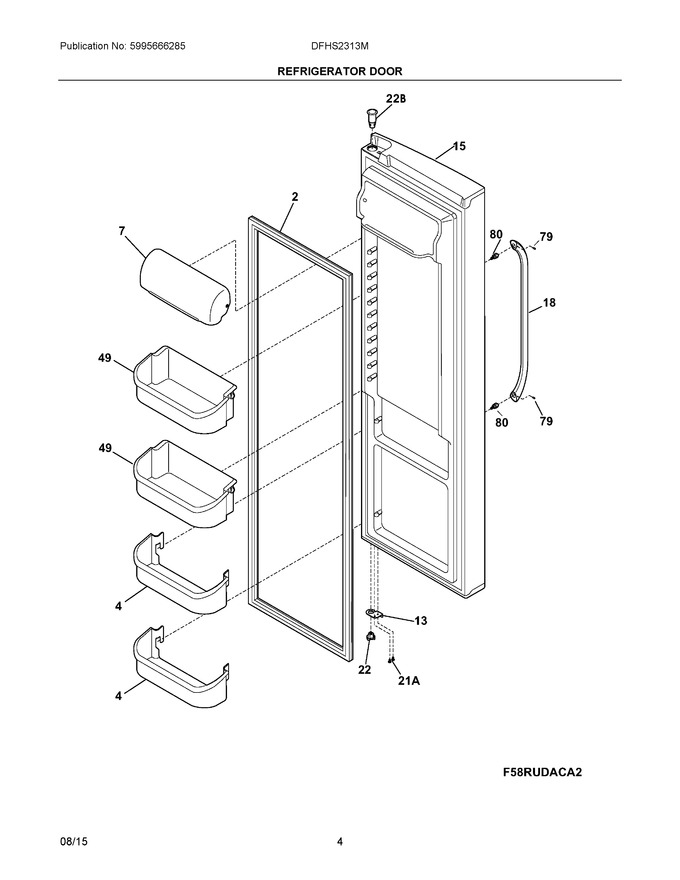

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Black, Magnetic (Replaces: 241786007) |
|
Immediately | $ 94.66 | ||||
| 4 | 240363702 | Bin-door, 2-liter |
|
Immediately | $ 76.40 | ||||
| 7 | 240338313 | Door, Dairy, Clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 13 | 241942603 | Door Stop, Black, Ref |
|
$ 20.56 | |||||
| 15 | 241837275 | Door-refr, Stainless, Complete Assy |
|
$ 601.13 | |||||
| 18 | 242059301 | Handle-door, Stainless, W/set Screws |
|
$ 219.03 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 49 | 240324502 | Bin-door, Gallon |
|
Immediately | $ 102.61 | ||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 |
