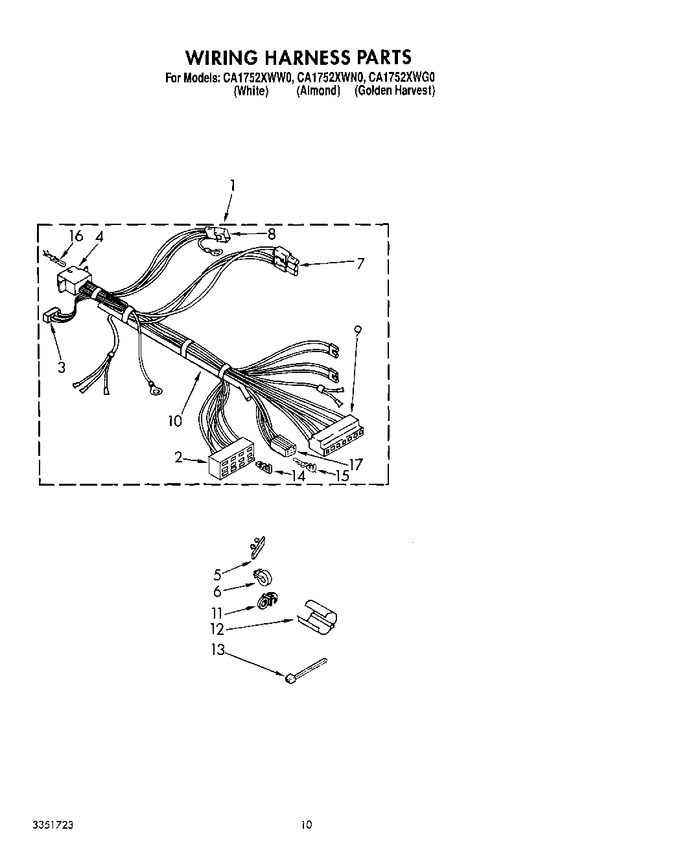

07 - Wiring Harness


08 - Brake And Drive Tube


09 - Gearcase


10 - Water System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3359815		Harness, Base		Appelez-nous	-
2	385826		Connector		Appelez-nous	-
3	359900		Connector		Appelez-nous	-
4	370147		Connector		Appelez-nous	-
5	389379		Clip, Harness				$ 5.84
6	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
7	WP62889		Receptacle, Terminal (3-way) (lid Switch)   (Replaces: 62889)				$ 6.88
8	353424		Plug, Terminal (3-way) (power Cord)				$ 18.95
9	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
10	WP353244		Hose, Pressure Switch   (Replaces: 353405)			Immediately	$ 53.94
11	62749		Clip, Harness				$ 18.77
12	63523		Protector, Harness				$ 169.95
13	3390496		Clip, Harness		Appelez-nous	-
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
15	94613		Terminal		Appelez-nous	-
16	96413		Terminal, Female		Appelez-nous	-
17	94612		Connector		Appelez-nous	-
