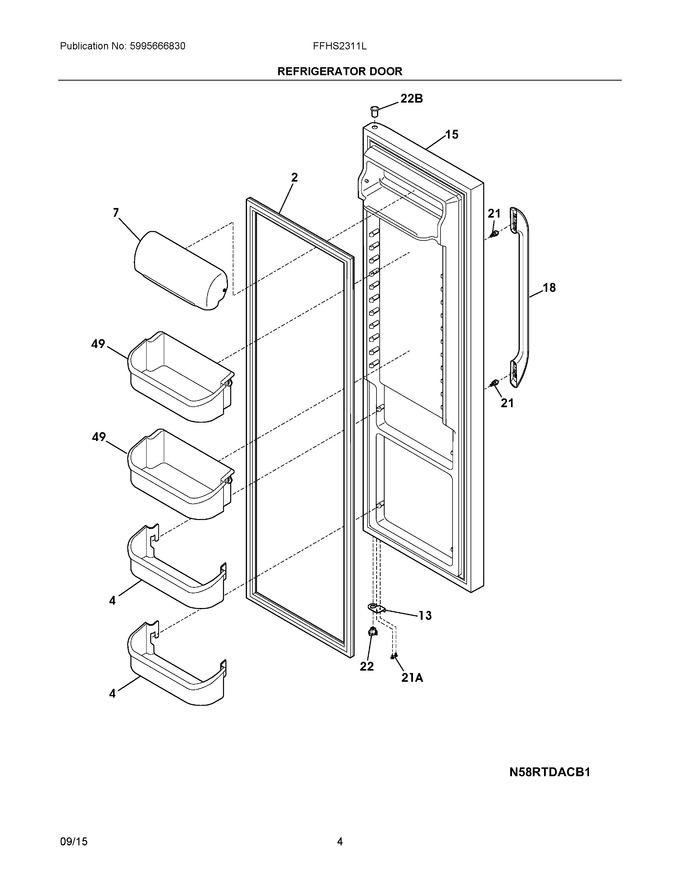

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door, Black, Magnetic   (Replaces: 241786007)			Immediately	$ 94.66
4	240363701		Bin-door, 2-liter			Immediately	$ 59.42
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581905		Door Stop, Black, Ref				$ 60.25
15	242038873		Door-refr, Black, Complete Assy		Appelez-nous	-
18	242059102		Handle-door, Black				$ 88.69
21	241695904		Screw				$ 14.41
22	242015302		Bearing-hinge(ref), Black, Closer				$ 10.62
49	240324501		Bin-door, Gallon			Immediately	$ 69.06
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge, Black, Upper				$ 22.87
