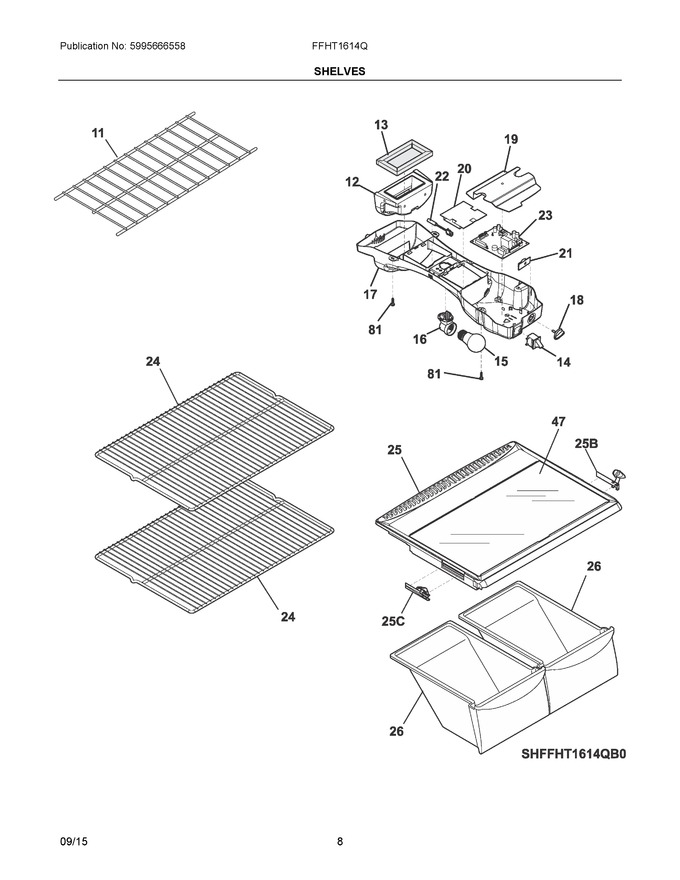

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358007		Shelf, Freezer			Immediately	$ 87.17
12	242228801		Diffuser, Air, Control Box				$ 34.89
13	242240601		Gasket, Air Diffuser				$ 20.84
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket, Light   (Replaces: 242081801)				$ 72.68
17	242216701		Control Box				$ 232.82
18	242217001		Knob, Cold Control				$ 226.00
19	242216901		Cover, Control Housing				$ 0.71
20	242228701		Shield, Heat				$ 17.25
21	5304501856		Board, User Interface, Potentiometer   (Replaces: 242231601)			Immediately	$ 766.96
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	5303918675		Board, Main Control, Erf1500   (Replaces: 242216804)			Immediately	$ 765.99
24	240360906		Shelf, Sliding, Wire			Immediately	$ 99.35
25	5304497604		Cover, Crisper Pans, W/2 Humid Cntls			Immediately	$ 108.31
26	240364503		Pan, Crisper, (2)			Immediately	$ 146.53
47	242087903		Glass-shelf, Crisper Cover			Immediately	$ 116.19
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NI	5304497605		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.09
NIA	242213801		Harness Assembly, Wiring, Control Box				$ 79.62
NIB	5303299664		Spacer, Shelf				$ 24.10
