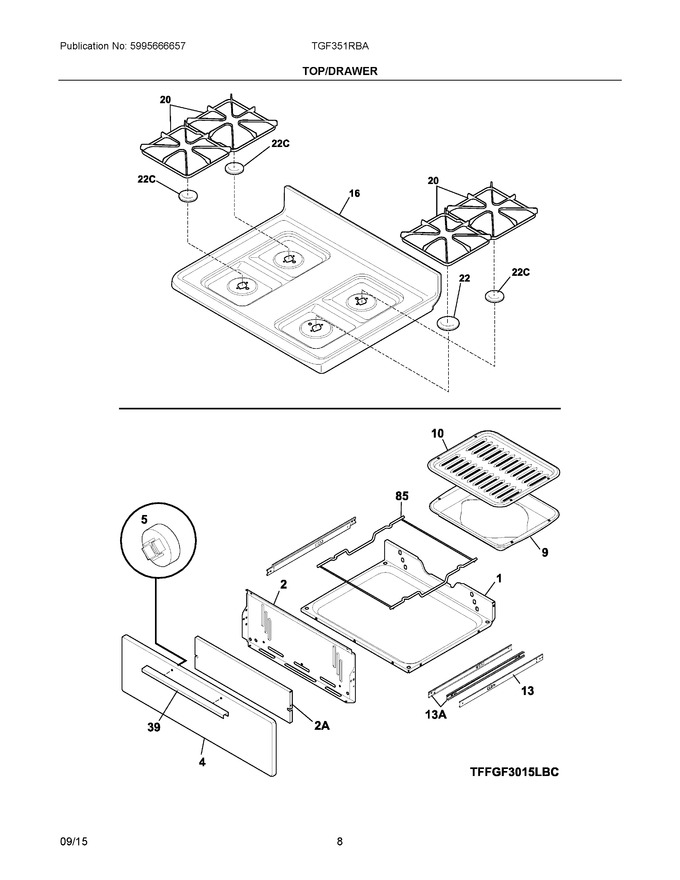

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Low Broil				$ 232.57
2	316236401		Liner, Low Broil				$ 119.96
4	316231211		Panel, Drawer, White				$ 51.92
5	316129100		Fastener, Push-in Nut, Nylon, Spacer		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blue				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blue				$ 81.14
13	316111503		Glide, Low Broil, Outer/rh & Lh, (2)		Appelez-nous	-
16	316202372		Main Top, White		Appelez-nous	-
20	316463200		Grate, Gloss Black, (4)				$ 129.00
22	316261900		Cap, 12k Burner, Black				$ 48.77
39	316019511		Handle, Drawer, White				$ 109.36
85	316115600		Rack, Low Broil				$ 105.47
13A	316534200		Glide, Low Broil, Inner				$ 42.75
22C	316261800		Cap, 9.5k Burner, Black, (3)		Appelez-nous	-
2A	316541500		Shield, Broiler				$ 61.37
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw, Shoulder Head, 8-18 X 5/8, (2), Square Drive				$ 13.28
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
