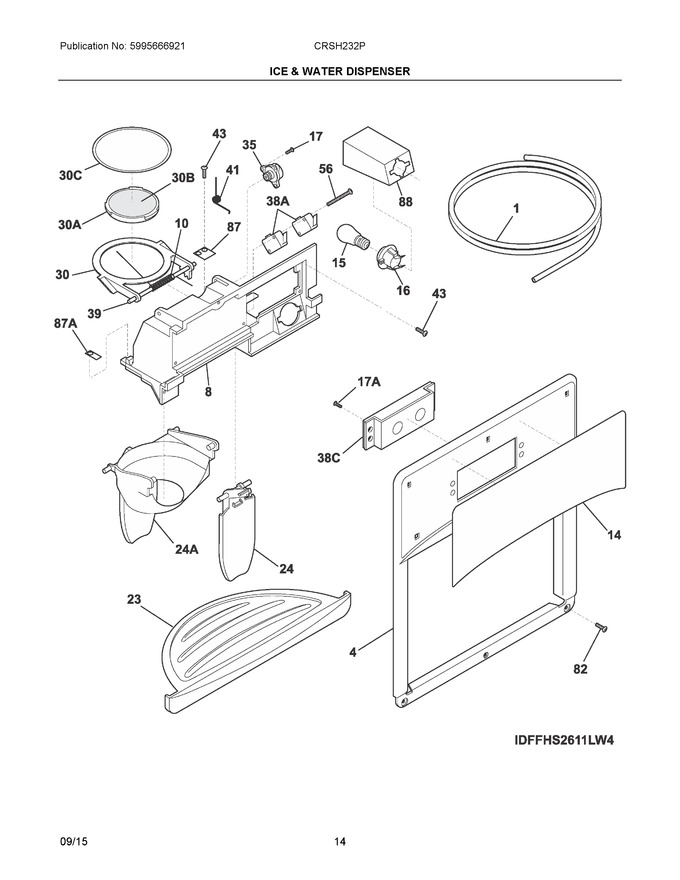

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 4 | 241679003 | Cover-module, Black |
|
$ 75.02 | |||||
| 8 | 241680507 | Module-dispenser |
|
$ 70.75 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 21.27 | ||||
| 14 | 240570232 | Label-module Cover, Black |
|
- | |||||
| 15 | 241689401 | Light Bulb |
|
- | |||||
| 16 | 240548901 | Socket-light |
|
$ 63.70 | |||||
| 17 | 241679801 | Screw |
|
$ 14.18 | |||||
| 23 | 241649003 | Drip Tray, Black |
|
$ 61.66 | |||||
| 24 | 241682003 | Actuator-water, Black |
|
Immediately | $ 55.63 | ||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 49.62 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 70.52 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 43.24 | |||||
| 41 | 241689001 | Spring-actuator |
|
$ 21.97 | |||||
| 43 | 215296301 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head |
|
$ 13.46 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 87 | 241688302 | Bearing Plate |
|
$ 19.85 | |||||
| 88 | 241686101 | Shield-light |
|
$ 36.02 | |||||
| 17A | 241679901 | Screw, Shield Mtg. |
|
$ 14.18 | |||||
| 24A | 241681903 | Actuator-ice, Black |
|
Immediately | $ 83.64 | ||||
| 30A | 241688501 | Door Center |
|
$ 52.97 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 63.17 | |||||
| 30C | 241688701 | Door Seal |
|
$ 40.46 | |||||
| 38A | 241689106 | Switch-micro, Single Pole, Double Throw (Replaces: 241689101) |
|
Immediately | $ 8.60 | ||||
| 38C | 5304525097 | Switch (Replaces: 241679101) |
|
$ 103.90 | |||||
| 87A | 241688301 | Bearing Plate |
|
$ 19.85 | |||||
| NI | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 | |||||
| NIAA | 241679201 | Harness-wiring |
|
$ 82.22 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NICA | 241873301 | Harness-wiring (Replaces: 241686001) |
|
$ 11.15 | |||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
