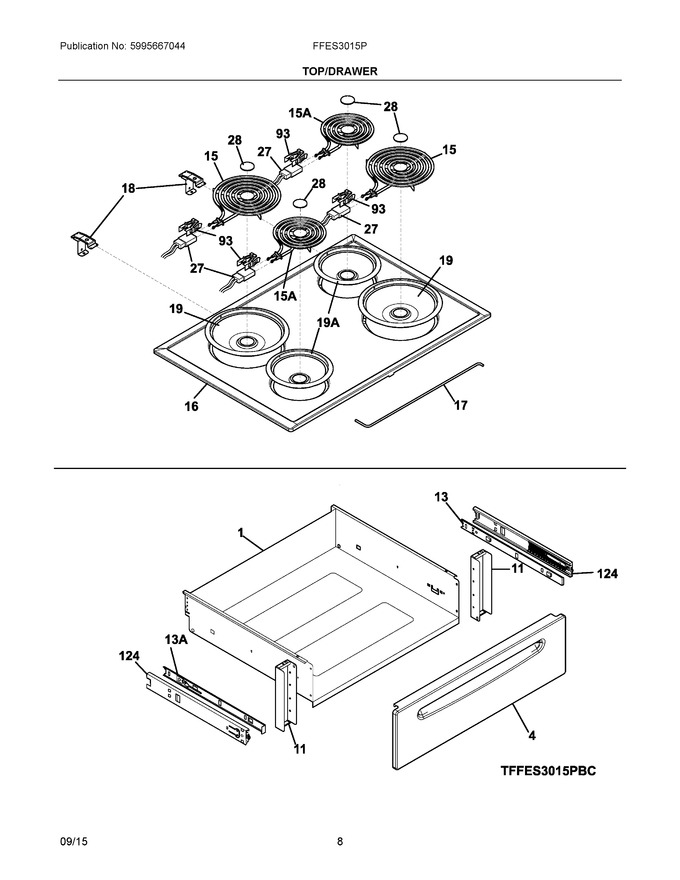

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298906		Panel, Drawer, White, Front				$ 145.30
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318259504		Glide, Warmer, Inner Rh				$ 29.49
15	316442301		Element, Surface, 8", Large   (Replaces: 318372214)			Immediately	$ 44.39
16	318225607		Main Top, White				$ 247.17
17	3051554		Rod, Support, Main Top Panel		Appelez-nous	-
18	318227710		Hinge, Maintop, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	807198301		Harness Assembly, Complete, Top Elements		Appelez-nous	-
28	5303017715		Medallion, 1 1/2"dia, Black, Surface Element				$ 64.46
93	318366410		Support, Terminal Block, (4)				$ 13.47
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
13A	318259505		Glide, Warmer, Inner Lh				$ 33.03
15A	318372211		Element, Surface, 6", Small			Immediately	$ 45.14
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304503375		Harness, Surface Coil		Appelez-nous	-
NI	318532147		Ground Wire, W/terminal		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
