Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 315200B Assy, Glass & Frame Appelez-nous -
2 314488B Knob, Infinite Sw (black) Appelez-nous -
3 314488B Knob, Infinite Sw (black) Appelez-nous -
4 Y0307427 Cover, Hole-electric Special Order $ 7.75

5 314489B Knob, Dual Infin Sw (black) Appelez-nous -
7 M0211519 Screw Appelez-nous -
9 WP3400882 Screw, No.8-32 X 3/16 Pph   (Replaces: Y0307443) In-Stock Immediately $ 6.47

10 Y0307458 Light, Indicator Appelez-nous -
11 W11121639 Switch, Infinite   (Replaces: Y0309862) Special Order $ 149.17

12 Y0041991 Switch Gasket Xet-490 Appelez-nous -
13 0309550 Switch, Dual Infinite Appelez-nous -
14 W11121639 Switch, Infinite   (Replaces: Y0309862) Special Order $ 149.17

15 0307444 Insulation, Ind. Light Appelez-nous -
16 Y0307442 Light, Indicator Appelez-nous -
17 M0281002 Nut A Appelez-nous -
18 307639B Bracket, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

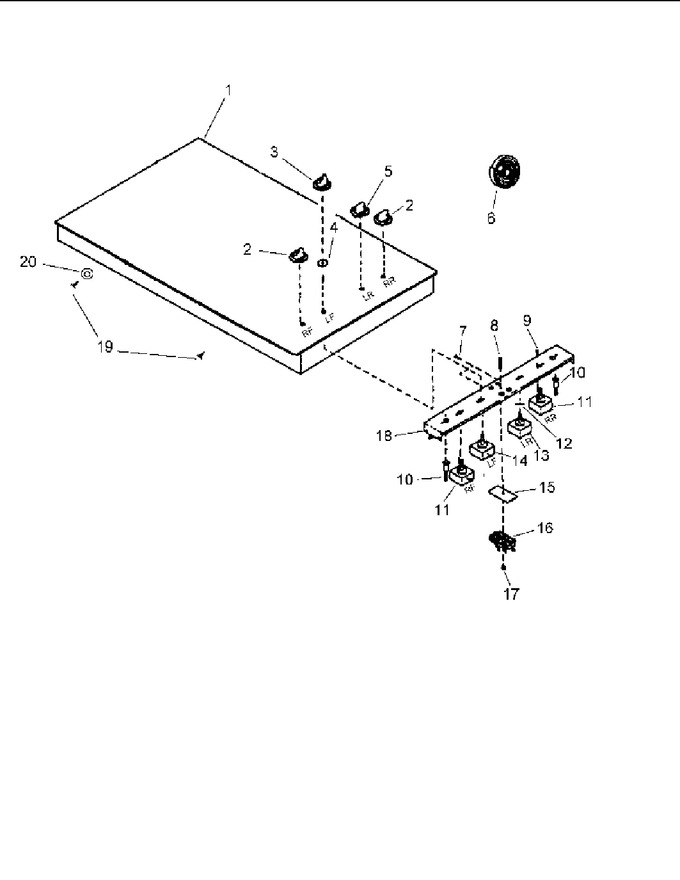

Diagram for AK2T30E2 (BOM: P1131563N E)
