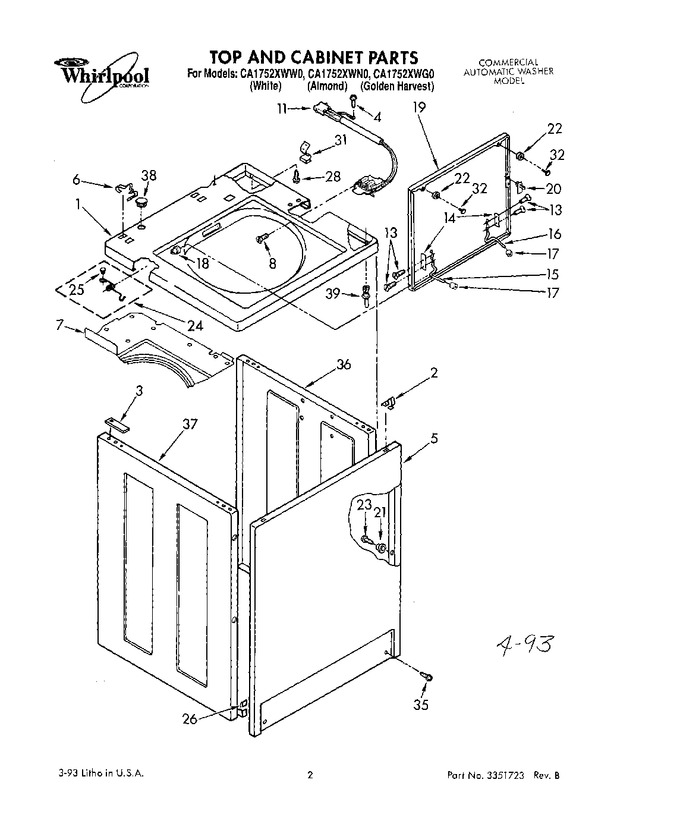

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3360736 | Top (golden Harvest) |
|
- | |||||
| 1 | 3360734 | Top (white) |
|
- | |||||
| 1 | 3360735 | Top (almond) |
|
- | |||||
| 2 | WP18776 | Lock (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 3 | 3353950 | Spacer, Cabinet To Top (4) |
|
$ 6.74 | |||||
| 4 | WP3351614 | Screw (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 5 | 3358501 | Panel, Front (for Almond Model) |
|
- | |||||
| 5 | 3358502 | Panel, Front (for Golden Harvest Model) |
|
- | |||||
| 5 | WP3358500 | Panel, Front (white) (Replaces: 3358500) |
|
$ 298.75 | |||||
| 6 | 3353820 | Clip, Top & Cabinet & Rear Panel (2) |
|
- | |||||
| 7 | 3357851 | Shield, Lid |
|
- | |||||
| 8 | 354764 | Screw & Washer, Lid Switch (2) |
|
- | |||||
| 11 | 3352633 | Switch, Lid |
|
- | |||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 30.09 | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 24.71 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 3360833 | Lid (golden Harvest) |
|
- | |||||
| 19 | 3360831 | Lid (white) |
|
- | |||||
| 19 | 3360832 | Lid (for Almond Model) |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 6.90 | ||||
| 21 | 3353812 | Locator (4) |
|
$ 5.51 | |||||
| 22 | 3360787 | Bumper, Lid (2) |
|
- | |||||
| 23 | WP9741232 | Screw (4) (Replaces: 718258) |
|
Immediately | $ 4.56 | ||||
| 24 | 3349948 | Spring Hinge, Lid |
|
- | |||||
| 25 | 54690 | Plug, Button |
|
- | |||||
| 26 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 28 | 3353993 | Screw (2) |
|
$ 5.86 | |||||
| 31 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 32 | WP356907 | Rivet, Plastic (Replaces: 356907) |
|
$ 6.66 | |||||
| 35 | WP3373329 | Screw, Panel Mounting (2) (Replaces: 3393258) |
|
$ 6.91 | |||||
| 36 | 3355363 | Panel, R. H. (white) |
|
- | |||||
| 36 | 3355364 | Panel, R. H. (almond) |
|
- | |||||
| 36 | 3355365 | Panel, R. H. (golden Harvest) |
|
- | |||||
| 37 | 3353714 | Panel, L. H. (white) |
|
- | |||||
| 37 | 3353715 | Panel, L. H. (almond) |
|
- | |||||
| 37 | 3353716 | Panel, L. H. (for Golden Harvest Model) |
|
- | |||||
| 38 | 387371 | Plug, Lock |
|
$ 11.36 | |||||
| 39 | 3353949 | Pin, Locator (2) |
|
$ 6.23 | |||||
| LIT3353830 | Label, Wiring Diagram |
|
- | ||||||
| LIT3351723 | List, Repair Parts |
|
- | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
$ 93.95 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| LIT3360614 | Sheet, Installation Instructions |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 3348675 | Shipping Kit |
|
- | ||||||
| 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 | ||||||
| 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 82.45 | |||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
