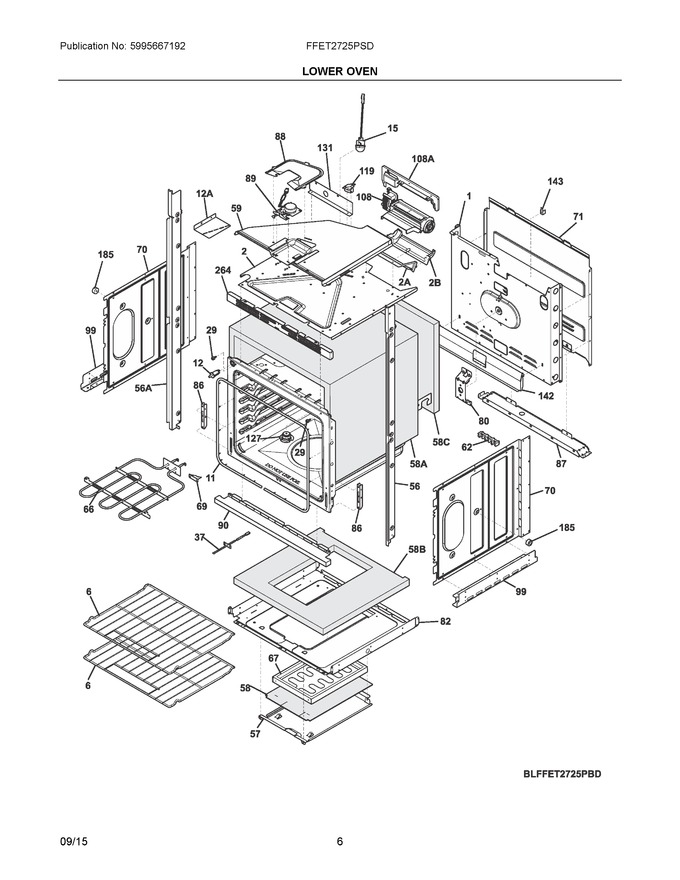

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139003801		Panel, Main Back		Appelez-nous	-
2	139027805		Shield, Insulation, Top		Appelez-nous	-
6	139011901		Rack, Oven, W/handle   (Replaces: 139011900)				$ 36.24
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Spacer, Oven Door				$ 12.05
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
56	318903676		Trim, Side Filler, Black, Rh				$ 126.86
57	139021200		Panel, Service, Bake Element				$ 32.31
58	139022100		Insualtion, Bake Element		Appelez-nous	-
59	139015700		Duct, Cooling, Lower Oven		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	318902502		Element, Hidden Bake, 1450w			Immediately	$ 205.21
69	139022500		Bracket, Element Guide		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	139003101		Shield, Insulation, Lower				$ 91.01
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	139021900		Bracket, Cable Mtg.		Appelez-nous	-
88	139038700		Cover, Latch Motor, Lower Oven		Appelez-nous	-
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
90	318259861		Trim, Base, Stainless		Appelez-nous	-
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
108	139038301		Blower Assembly, Cooling, Cross Flow, W/baffle				$ 188.21
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139015200		Cover, Center Rear, Cross Flow		Appelez-nous	-
142	139021800		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139013501		Trim, Center Vent, Black		Appelez-nous	-
108A	139015300		Bracket, Fan Mtg., Cross Flow		Appelez-nous	-
12A	807641201		Shield, Door Switch				$ 64.49
2A	139015900		Shield, Fan, Cross Flow		Appelez-nous	-
2B	139038901		Housing, Fan, Air Diverter				$ 31.19
56A	318903677		Trim, Side Filler, Black, Lh		Appelez-nous	-
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58B	139021501		Insulation, Oven Bottom				$ 31.19
58C	139021401		Insulation, Oven Back		Appelez-nous	-
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	5304506984		Box & Wires Assy   (Replaces: 318394442)				$ 150.17
NI	807460601		Harness, Wiring, Main		Appelez-nous	-
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318231870		Wiring Harness, Bake Element				$ 83.42
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	807181801		Wiring Harness, Latch Motor, Lower Oven		Appelez-nous	-
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NIB	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIBA	316021119		Screw, Ab Nickel, 8-18 X 11/16		Appelez-nous	-
