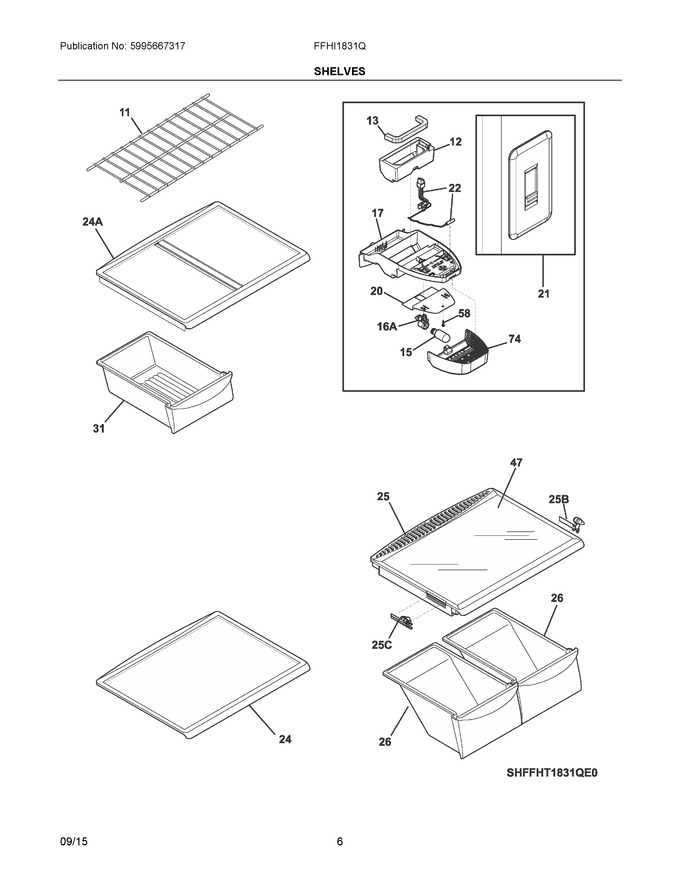

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358008 | Shelf, Freezer |
|
$ 91.80 | |||||
| 12 | 242248501 | Diffuser, Air, Light Box |
|
- | |||||
| 13 | 240568608 | Gasket, Air Diffuser |
|
- | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552807) |
|
Immediately | $ 73.06 | ||||
| 17 | 242248401 | Box, Light/diffuser |
|
Immediately | $ 61.66 | ||||
| 20 | 242248601 | Shield, Heat |
|
$ 24.10 | |||||
| 21 | 242249002 | Control Assembly, Temperature, W/user Interfce |
|
Immediately | $ 211.91 | ||||
| 22 | 242298701 | Harness, Wiring, Light Box, W/ff Thermistor |
|
$ 71.59 | |||||
| 24 | 240358926 | Shelf-"spill-safe", Sliding (Replaces: 240358925) |
|
Immediately | $ 129.17 | ||||
| 25 | 240364787 | Cover-crisper Pan |
|
Immediately | $ 120.98 | ||||
| 26 | 240337103 | Pan-crisper, Clear, (2), No Graphics |
|
Immediately | $ 148.35 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear |
|
Immediately | $ 135.77 | ||||
| 47 | 240350608 | Insert-pan Cover, 23.82" X 15.50", Glass |
|
Immediately | $ 45.50 | ||||
| 58 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 74 | 242248701 | Lens, Light Cover |
|
$ 48.77 | |||||
| 16A | 240590403 | Socket-light |
|
$ 26.54 | |||||
| 24A | 240358926 | Shelf-"spill-safe", Sliding, W/pan Hanger |
|
Immediately | $ 129.17 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| NI | 5304498735 | Label, Energy Guide |
|
- | |||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.09 |
