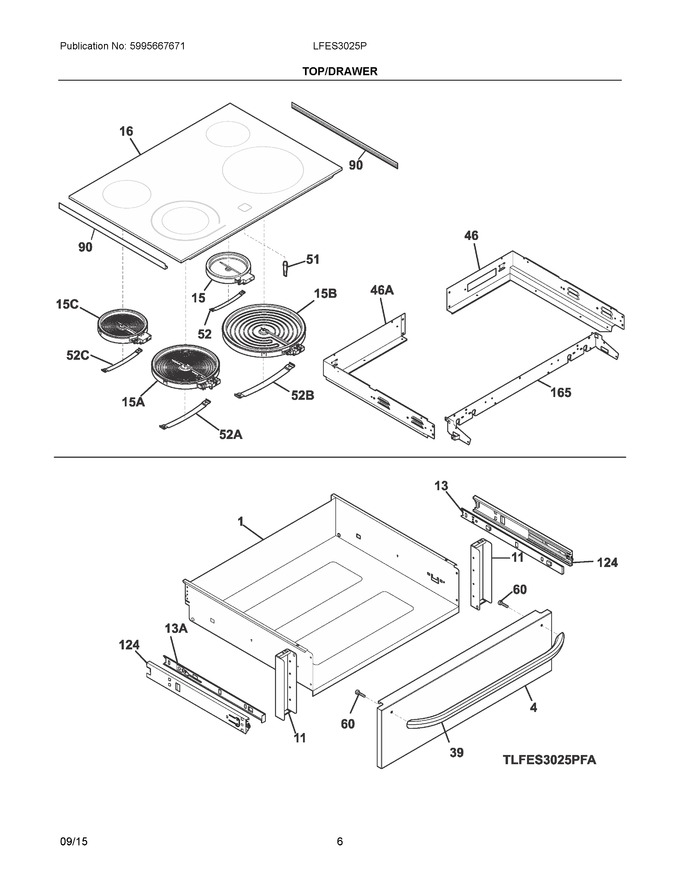

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298829		Panel, Drawer, Stainless, Front   (Replaces: 318298826)				$ 210.92
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318259504		Glide, Warmer, Inner Rh				$ 29.49
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	139033804		Smoothtop Assembly, Glass, Black				$ 206.80
39	316558201		Handle, Door, Stainless				$ 174.23
46	318568200		Box, Burner, Rh				$ 23.99
51	318044831		Light, Indicator, Natural, (4)				$ 16.69
52	318122006		Spring, Element Mtg, Small				$ 66.25
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	318368001		Channel, Glass Protector, (2)				$ 22.98
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
165	318227520		Plate, Mounting				$ 47.99
13A	318259505		Glide, Warmer, Inner Lh				$ 33.03
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316291200		Element, Surface, 12", 2700w			Immediately	$ 235.31
15C	318198851		Element, Surface, 7", 1500w				$ 188.07
46A	318568201		Box, Burner, Lh				$ 28.93
52A	318122010		Spring, Element Mtg, 3000w				$ 62.51
52B	318122011		Spring, Element Mtg, 1200w/1800w				$ 62.14
52C	318122004		Spring, Element Mtg, 700w & 2100w				$ 55.76
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NI	5304503334		Harness, Surface				$ 106.73
NI	318532147		Ground Wire, W/terminal		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
