01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts

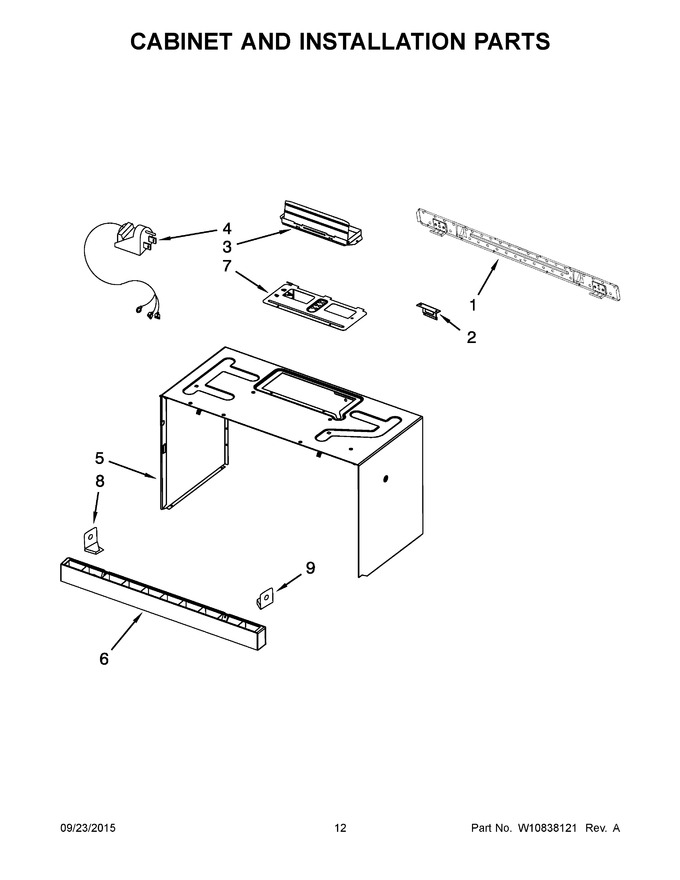

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 5 | WPW10245176 | Case, Outer (black) (Replaces: W10245176) |
|
$ 198.23 | |||||
| 6 | W10245216 | Grille, Vent (stainless) |
|
$ 124.00 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W11026306 | Vent Grid Holder, Left Side (stainless) (Replaces: W10703284) |
|
Immediately | $ 6.47 | ||||
| 9 | W10703282 | Vent Grid Holder, Right Side (stainless) |
|
$ 9.44 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 88.90 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper |
|
$ 56.21 | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10556400 | Miscellaneous Parts, Harness, Main |
|
$ 155.90 | |||||
| NI | W10553873 | Miscellaneous Parts, Harness, Head Lamp And Turntable Assembly |
|
$ 110.28 |
