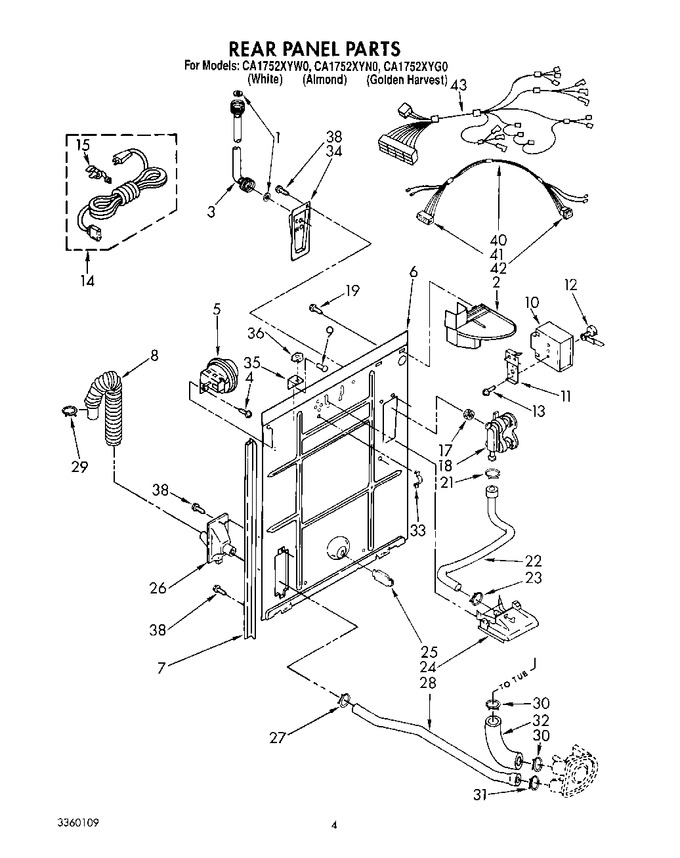

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	3352511		Shield, Harness & Etc		Appelez-nous	-
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3358797)			Immediately	$ 21.68
4	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
5	3353831		Pressure Switch		Appelez-nous	-
6	3353809		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel (r.h. - Short)   (Replaces: 3354204)				$ 23.63
7	WP62747		Pad, Rear Panel (l.h. - Long)   (Replaces: 3354205)				$ 23.63
8	285666		Hose, Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (5 1/2 Ft.)   (Replaces: 661575)			Immediately	$ 33.20
9	63554		Rivet (2)		Appelez-nous	-
10	3354024		Timer, 115v. - 60hz.		Appelez-nous	-
11	3353814		Bracket, Mtg.		Appelez-nous	-
12	98654		Set Screw		Appelez-nous	-
12	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 10.58
12	385571		Clutch, Timer				$ 42.89
13	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
14	285928		Cord, Power   (Replaces: 3359548)				$ 118.00
15	62733		Strain Relief, Power Cord To Rear Panel		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 49.57
19	WP3351614		Screw, Ground (2)   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
22	3353815		Hose, Vacuum Break		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 76.37
29	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	64162		Retainer, Hose		Appelez-nous	-
34	3353777		Plate, Mixing Valve		Appelez-nous	-
35	3347824		Bracket, Top Lock		Appelez-nous	-
36	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
38	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
40	3354591		Harness, Timer (includes Illus. 68 & 69)		Appelez-nous	-
41	W10876590		Block, Timer Disconnect   (Replaces: 352089)				$ 11.48
42	384474		Cap, Terminal (15 Way)		Appelez-nous	-
43	3355005		Harness, Console		Appelez-nous	-
