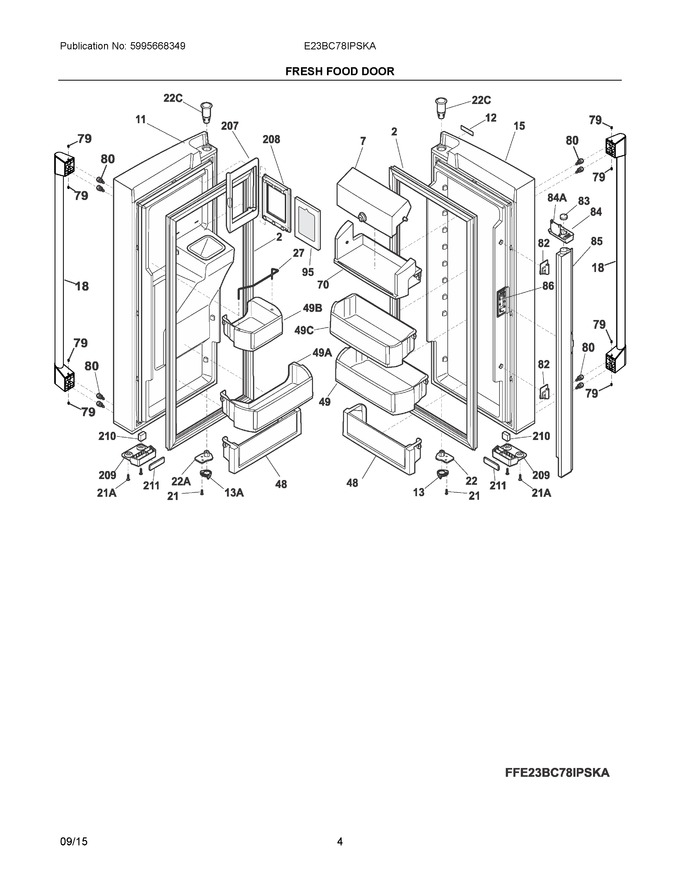

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-door, White (Replaces: 241778301) |
|
Immediately | $ 89.88 | ||||
| 7 | 241895805 | Door-dairy (Replaces: 241804701) |
|
$ 104.18 | |||||
| 11 | 241988068 | Door, Refr, Stainless Steel, Lh |
|
$ 594.41 | |||||
| 12 | 241603101 | Label, Nameplate, Elux/icon |
|
$ 80.96 | |||||
| 13 | 241868401 | Door Stop, Refrig Rh, Plated |
|
$ 18.43 | |||||
| 15 | 241988064 | Door, Refr, Stainless Steel, Rh |
|
$ 636.41 | |||||
| 18 | 242052504 | Handle Assembly, Stainless, W/endcaps (Replaces: 241637927) |
|
$ 313.97 | |||||
| 21 | 242017501 | Screw, 10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam, Upper Hinge, Rh |
|
$ 23.31 | |||||
| 27 | 241752702 | Retainer, Tall Bottle |
|
$ 39.44 | |||||
| 48 | 241804303 | Bin-door, Can |
|
$ 93.38 | |||||
| 49 | 241804007 | Bin-door, Gallon |
|
$ 126.11 | |||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 241778808 | Flipper Mullion Assembly, W/heater |
|
Immediately | $ 315.40 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter, Air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 207 | 241934901 | Housing-filter, Air |
|
$ 35.44 | |||||
| 208 | 241935001 | Door-air Filter |
|
$ 98.24 | |||||
| 209 | 242291001 | Housing, Magnet, White |
|
$ 20.48 | |||||
| 210 | 241779101 | Magnet, Door |
|
Immediately | $ 31.19 | ||||
| 211 | 241979601 | Bumper, Rubber, White |
|
$ 22.68 | |||||
| 13A | 241868402 | Door Stop, Refrig Lh, Plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam, Upper Hinge, Lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 49A | 241896004 | Bin-door, 2-liter |
|
$ 75.50 | |||||
| 49B | 241906302 | Bin-door, Dispenser |
|
$ 44.65 | |||||
| 49C | 241896104 | Bin-door, 1/2 Gallon |
|
$ 112.69 | |||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 41.44 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 241926002 | Harness-wiring, Door Led |
|
$ 47.99 | |||||
| NIA | 241995401 | Divider-dairy Compt, 70* |
|
$ 19.13 | |||||
| NIA | 241836301 | Knob-dairy Door |
|
$ 38.98 | |||||
| NIA | 241788402 | Harness-wiring, Flipper Mullion |
|
- | |||||
| NIB | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIB | 241836401 | Latch-door |
|
$ 18.43 | |||||
| NIC | 5304453707 | Screw (Replaces: 241641501) |
|
Immediately | $ 15.92 | ||||
| NIC | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 |
