SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

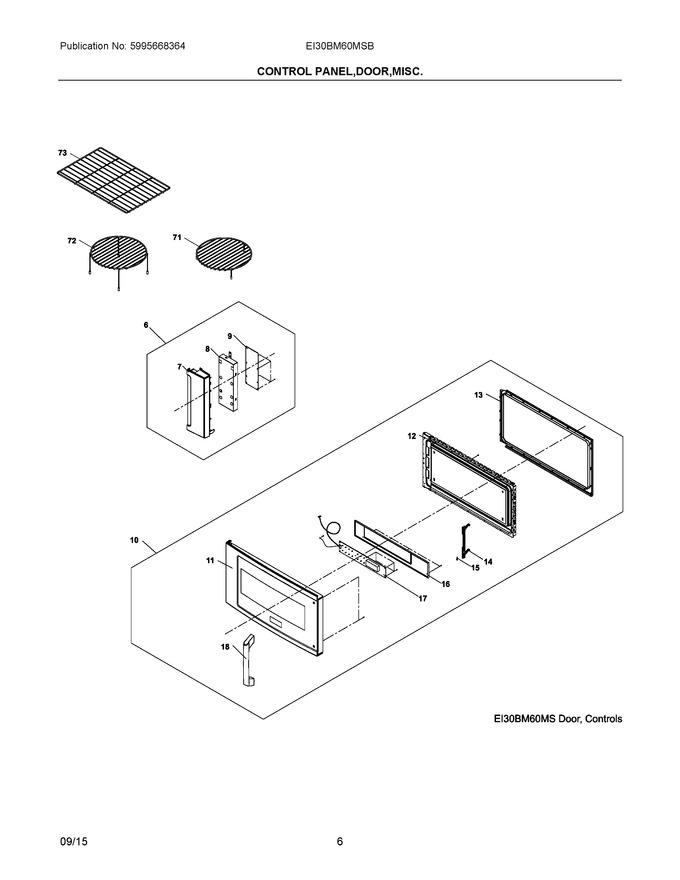

03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304503308		Control Assembly, Stainless Steel				$ 692.78
7	5304503309		Control Panel, W/membrane, Ss				$ 287.76
8	5304488346		Panel, Control Mount, Bracket				$ 47.49
9	5304521586		Pc Board, Main, Control/power   (Replaces: 5304488347)				$ 349.89
10	5304503310		Door Assembly, Stainless, W/led				$ 968.27
11	5304503311		Panel, Outer Door, Stainless		Appelez-nous	-
12	5304488350		Panel, Inner Door				$ 282.79
13	5304513453		Frame, Choke Cover, Inner Door   (Replaces: 5304488351)				$ 52.78
14	4056021605		Latch, Door   (Replaces: 5304477389)			Immediately	$ 3.69
15	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 7.23
16	5304488352		Frame, Display Board, Cover		Appelez-nous	-
17	5304503312		Pc Board, Display/input, W/led		Appelez-nous	-
18	5304503313		Handle Assembly, Door, Stainless				$ 155.21
71	5304478926		Rack, Round, Wire, 3-leg				$ 127.58
72	5304488391		Rack, Round, Wire, 4-leg				$ 108.45
73	5304488392		Shelf, Wire				$ 237.12

    View Diagram in Separate Window       Print Part List
