01 - Cover Sheet

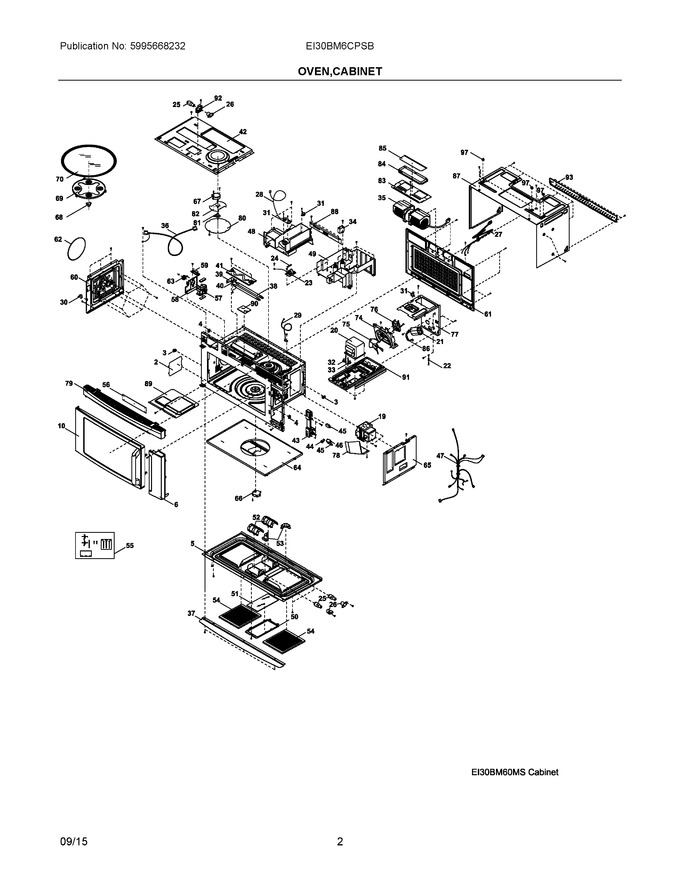

02 - Oven,cabinet
03 - Control Panel,door,misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304509435 | Cover, Waveguide (Replaces: 5304464061) |
|
Immediately | $ 13.74 | ||||
| 3 | 5304514283 | Support A, Shelf (rear) (Replaces: 5304488341) |
|
$ 10.94 | |||||
| 4 | 5304488342 | Support B, Shelf (front) |
|
$ 18.79 | |||||
| 5 | 5304488343 | Base, Unit Chassis |
|
- | |||||
| 6 | 5304503308 | Control Assembly, Stainless Steel |
|
$ 692.78 | |||||
| 10 | 5304503317 | Door Assembly, Stainless, W/led |
|
$ 785.30 | |||||
| 19 | 5304493801 | Magnetron, High Voltage |
|
$ 349.42 | |||||
| 20 | 5304515184 | Transformer, Power, Hv (Replaces: 5304464075) |
|
Immediately | $ 423.01 | ||||
| 21 | 5304493802 | Capacitor, High Voltage |
|
Immediately | $ 125.45 | ||||
| 22 | 5304488358 | Diode, High Voltage |
|
$ 35.32 | |||||
| 23 | 5304509452 | Filter, Noise, Electronic (Replaces: 5304472447) |
|
Immediately | $ 75.74 | ||||
| 24 | 5304509451 | Fuse (Replaces: 5304488359) |
|
Immediately | $ 13.01 | ||||
| 25 | 5304488360 | Lamp, Surface Light, Range Cooktop |
|
$ 98.38 | |||||
| 26 | 5304503670 | Lampholder, Light Socket |
|
$ 34.02 | |||||
| 27 | 5304512501 | Power Cord, Electric (Replaces: 5304464890) |
|
$ 106.27 | |||||
| 28 | 5304509652 | Sensor, Humidity (Replaces: 5304481519) |
|
$ 305.46 | |||||
| 29 | 5304488361 | Thermistor |
|
$ 93.56 | |||||
| 30 | 5304478919 | Thermostat, 160/95 *h |
|
$ 26.23 | |||||
| 31 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 21.78 | ||||
| 32 | 5304509474 | Thermostat, Cutout, Transformer (Replaces: 5304464093) |
|
Immediately | $ 20.97 | ||||
| 33 | 5304509475 | Thermostat, Cutout, Vent Motor (Replaces: 5304464094) |
|
Immediately | $ 19.52 | ||||
| 34 | 5304502494 | Capacitor, Start |
|
$ 119.39 | |||||
| 35 | 5304513464 | Fan Assembly, Vent, With Motor (Replaces: 5304488362) |
|
$ 557.67 | |||||
| 36 | 5304488363 | Wire, Connector, Pc Board |
|
$ 155.21 | |||||
| 37 | 5304488364 | Shield, Heat, Base Plate |
|
$ 217.59 | |||||
| 38 | 5304503314 | Heater, Quartz |
|
$ 50.32 | |||||
| 39 | 5304488366 | Bracket, Heater Mount |
|
- | |||||
| 40 | 5304488367 | Connector, Heater |
|
- | |||||
| 41 | 5304488368 | Insulator, Heater |
|
$ 43.24 | |||||
| 42 | 5304499877 | Panel, Insulator, Upper |
|
- | |||||
| 43 | 5304509457 | Latch Hook (Replaces: 5304499580) |
|
Immediately | $ 43.79 | ||||
| 44 | 5304509458 | Lever, Switch (Replaces: 5304464097) |
|
Immediately | $ 10.17 | ||||
| 45 | 5304509460 | Switch, Interlock (Replaces: 5304464099) |
|
Immediately | $ 45.27 | ||||
| 46 | 5304509459 | Switch, Monitor (Replaces: 5304464098) |
|
Immediately | $ 30.84 | ||||
| 47 | 5304494030 | Wiring Harness, Main |
|
$ 211.91 | |||||
| 48 | 5304488371 | Duct, Air Guide, Left |
|
- | |||||
| 49 | 5304488372 | Duct, Air Guide, Right |
|
- | |||||
| 50 | 5304488373 | Frame, Lens Glass |
|
- | |||||
| 51 | 5304488374 | Lens, Lamp Glass |
|
$ 46.08 | |||||
| 52 | 5304488375 | Cover, Lamp |
|
- | |||||
| 53 | 5304488376 | Bracket, Angle, Lamp Protector |
|
$ 14.89 | |||||
| 54 | 5304488377 | Filter, Grease, Washable |
|
$ 200.48 | |||||
| 55 | 5304503319 | Mounting Kit, With Templates |
|
$ 85.37 | |||||
| 56 | OTRFILTER | Filter, Air, Charcoal (Replaces: 5304488379) |
|
Immediately | $ 32.45 | ||||
| 57 | 5304488380 | Motor, Convection Fan |
|
Immediately | $ 270.27 | ||||
| 58 | 5304488381 | Bracket, Motor Mount |
|
- | |||||
| 59 | 5304488382 | Connector, Motor/bracket |
|
- | |||||
| 60 | 5304503320 | Convection Fan Assembly |
|
$ 318.23 | |||||
| 61 | 5304488384 | Panel, Cabinet Back |
|
- | |||||
| 62 | 5304502502 | Belt, Convection Fan |
|
$ 57.11 | |||||
| 63 | 5304488386 | Pulley, Fan Motor |
|
$ 31.19 | |||||
| 64 | 5304499878 | Panel, Insulator, Bottom |
|
$ 183.57 | |||||
| 65 | 5304488388 | Panel, Insulator, Right Side |
|
- | |||||
| 66 | 5304509440 | Motor, Turntable (Replaces: 5304464113) |
|
$ 118.13 | |||||
| 67 | 5304488389 | Motor, Stirrer Fan |
|
$ 172.63 | |||||
| 68 | 5304513472 | Coupler, Turntable/motor (Replaces: 5304499600) |
|
Immediately | $ 19.76 | ||||
| 69 | 5304518907 | Support, Turntable Ring, Brown (Replaces: 5304488390) |
|
$ 79.71 | |||||
| 70 | 5304513473 | Turntable, Tray, Glass (Replaces: 5304463319) |
|
$ 209.21 | |||||
| 74 | 5304488393 | Duct, Cooling Fan, Housing |
|
$ 73.74 | |||||
| 75 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 15.47 | |||||
| 76 | 5304499602 | Motor, Blower Fan |
|
$ 236.11 | |||||
| 77 | 5304488463 | Duct, Air Vent, Rear, Fan Mount |
|
- | |||||
| 78 | 5304488464 | Deflector, Air Vent, Magnetron |
|
$ 31.19 | |||||
| 79 | 5304503316 | Grille, Exhaust Vent |
|
$ 325.31 | |||||
| 80 | 5304488415 | Cover, Stirrer Fan |
|
$ 49.89 | |||||
| 81 | 5304509650 | Shaft, Stirrer Fan (Replaces: 5304488416) |
|
$ 19.52 | |||||
| 82 | 5304509649 | Stirrer Fan (Replaces: 5304488417) |
|
$ 15.90 | |||||
| 83 | 5304488418 | Cover, Vent Motor |
|
$ 81.50 | |||||
| 84 | 5304509485 | Frame, Damper Housing, Exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 25.32 | ||||
| 85 | 5304509486 | Damper, Door, Exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 27.73 | ||||
| 86 | 5304488419 | Retainer, Capacitor Strap |
|
- | |||||
| 87 | 5304488420 | Cabinet, Outer Casing |
|
$ 322.43 | |||||
| 88 | 5304488421 | Shield, Air Duct |
|
- | |||||
| 89 | 5304488422 | Cover, Lamp, Oven Cavity |
|
- | |||||
| 90 | 5304488423 | Lens, Lamp Glass, Oven Cavity |
|
- | |||||
| 91 | 5304488424 | Base, Transformer |
|
- | |||||
| 92 | 5304488425 | Lamp Holder, Socket |
|
$ 19.13 | |||||
| 93 | 5304509487 | Plate, Mounting, Rear (Replaces: 5304488426) |
|
Immediately | $ 59.63 | ||||
| 97 | 5304509436 | Mounting Nut Kit (Replaces: 5304502503) |
|
Immediately | $ 14.71 | ||||
| NI | 5304499876 | Screw Kit, All |
|
Immediately | $ 35.57 |
