| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

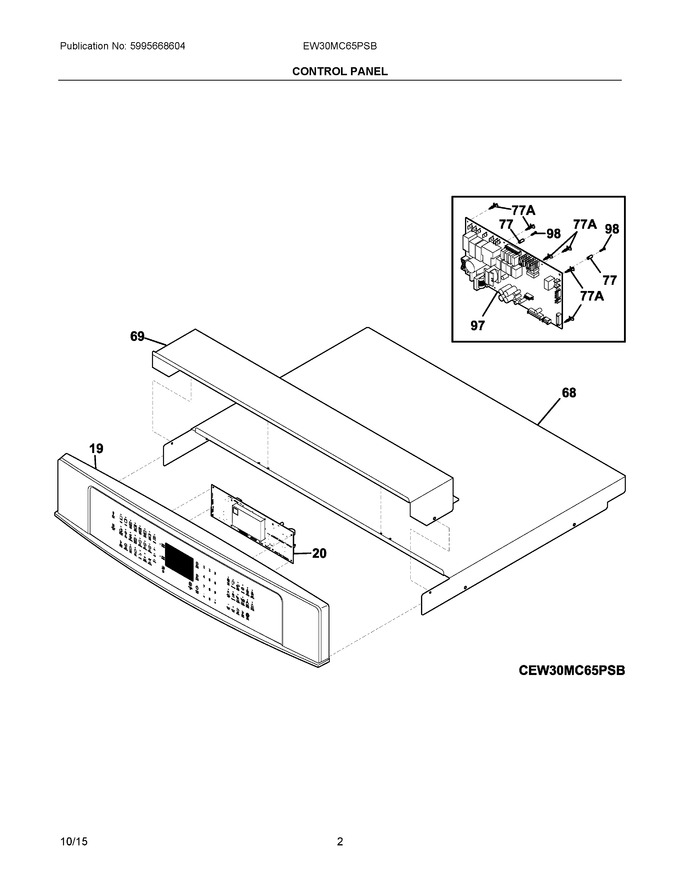

| 19 | 139034547 | Control Panel, Assembly, Black/stainless |
|
$ 1,262.52 | |||||
| 20 | 316570412 | Board, Control, Uib, Microcombi |
|
$ 385.47 | |||||
| 68 | 807119301 | Shield, Top |
|
- | |||||
| 69 | 318237323 | Shield, Control |
|
- | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 44.65 | |||||
| 97 | 316570512 | Board, Relay |
|
$ 485.81 | |||||
| 98 | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| NI | 5304517370 | Harness, Wiring, Communication, Es700w1 (Replaces: 807461802) |
|
$ 112.24 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 131892100 | Screw, Control Mtg, 6-32 X .25, (5) (Replaces: 316524400) |
|
- |
