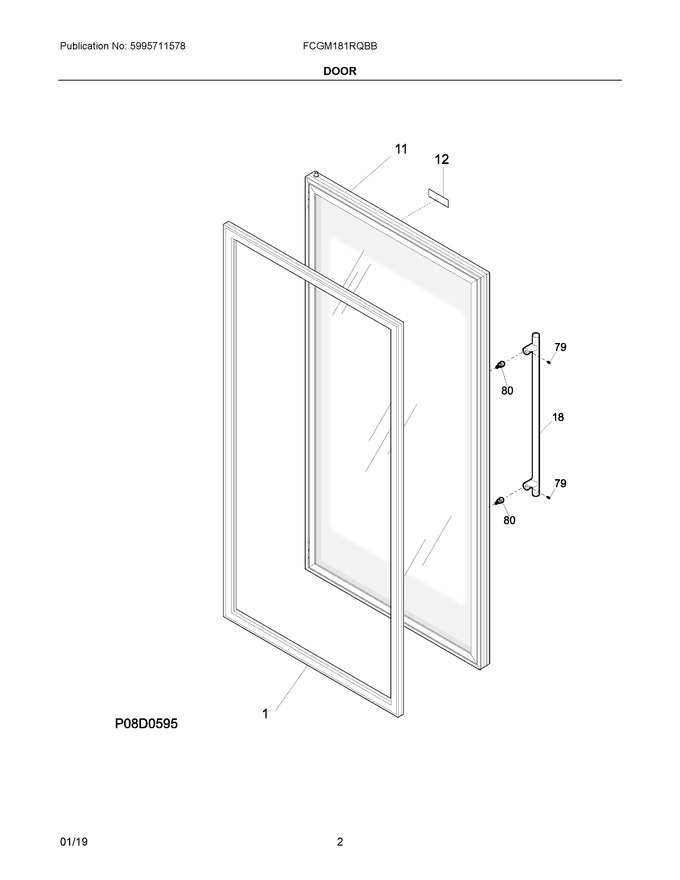

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216657201 | Gasket-door, Black |
|
$ 256.04 | |||||
| 11 | 297071600 | Door-assy, Glass |
|
$ 1,529.20 | |||||
| 12 | 297073400 | Nameplate, Commercial, Stainless |
|
$ 124.03 | |||||
| 18 | 297082700 | Handle, Stainless |
|
$ 223.02 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 18A | 297083500 | Plug-handle |
|
- |
