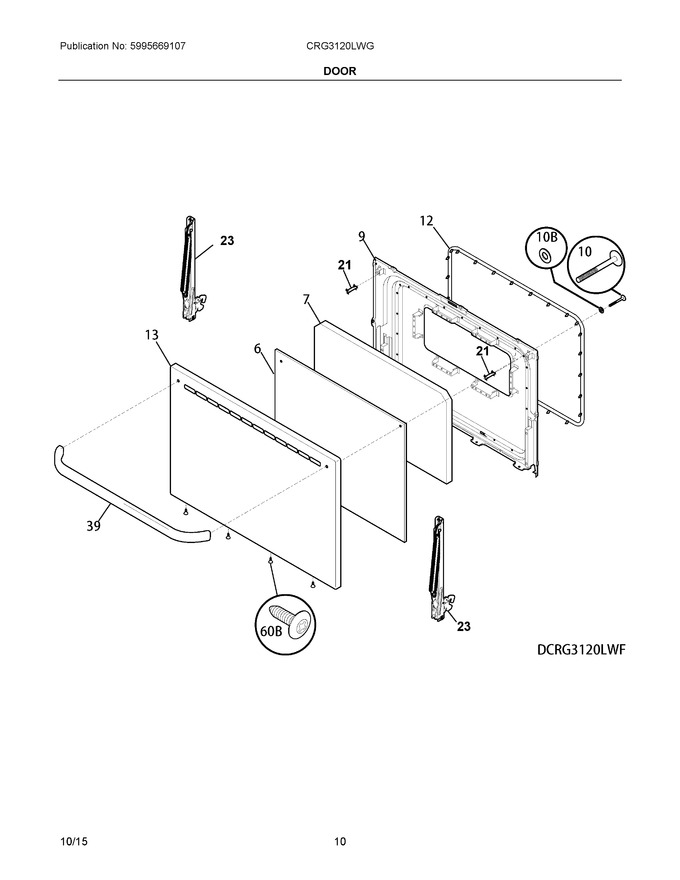

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	316546800		Shield, Knock Out		Appelez-nous	-
7	316236801		Insulation, Oven Door				$ 58.59
9	316230633		Liner, Oven Door		Appelez-nous	-
10	316001014		Screw, Waf Hd Sq, 10-24 X 1.6, Handle, (2)			Immediately	$ 47.03
12	316239700		Seal, Oven Door			Immediately	$ 152.43
13	316202609		Panel, Oven Door, White		Appelez-nous	-
21	316284101		Spacer, Door Handle, (2)		Appelez-nous	-
23	316575920		Hinge, Oven Door, Red		Appelez-nous	-
39	5304530039		Handle, Oven Door, White   (Replaces: 316456901)			Immediately	$ 167.43
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
