01 - Cover Sheet
02 - Door

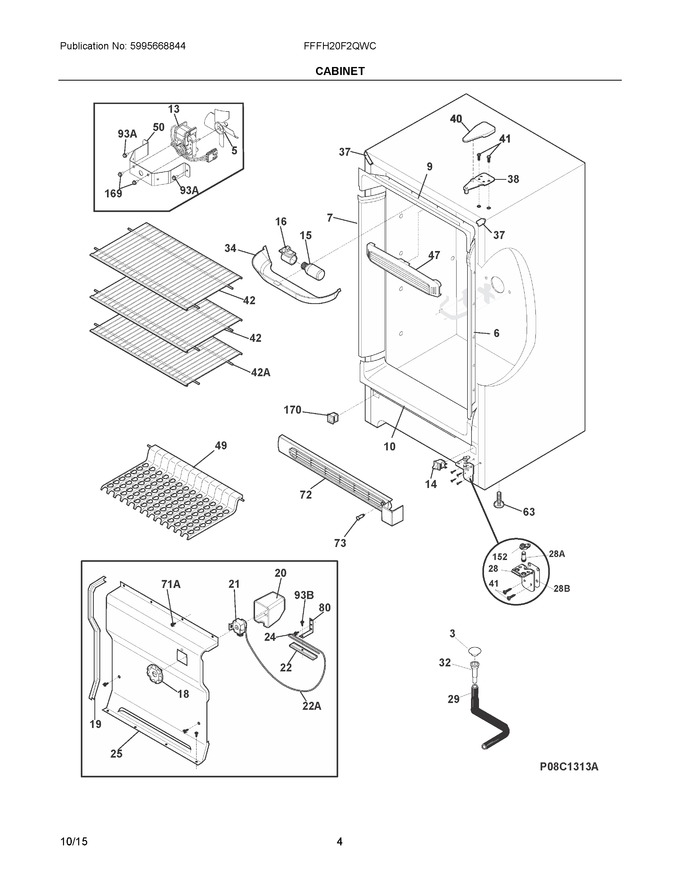

03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 5 | 297437300 | Fan Blade |
|
$ 7.46 | |||||
| 6 | 297435605 | Breaker |
|
$ 51.57 | |||||
| 7 | 297435604 | Breaker, U21, W/lock |
|
$ 58.50 | |||||
| 9 | 297403901 | Breaker, Top |
|
$ 55.42 | |||||
| 10 | 297403902 | Breaker, Bottom |
|
$ 60.82 | |||||
| 13 | 297309000 | Motor, Fan, 115 V (Replaces: 297250000) |
|
Immediately | $ 55.32 | ||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light, Led (Replaces: 5304495326) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket, Light/lamp, 25 W |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob, Temp Control |
|
$ 44.10 | |||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 35.74 | ||||
| 20 | 216967201 | Cover, Temp Control |
|
$ 15.18 | |||||
| 21 | 5304513033 | Control-temperature (Replaces: 297216037) |
|
Immediately | $ 83.14 | ||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5304460604 | Screw, Type A, 10-24 X 3/8 |
|
- | |||||
| 25 | 297099250 | Cover-evaporator |
|
$ 111.25 | |||||
| 26 | 297415900 | Ramp, Door Closer |
|
Immediately | $ 24.74 | ||||
| 28 | 297416301 | Hinge, Reversible, Bottom Rh |
|
$ 15.18 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 297382000) |
|
$ 13.74 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 37 | 297273904 | Trim-cabinet Corner, White, (2) (Replaces: 297273900) |
|
$ 7.59 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 19.52 | ||||
| 40 | 297164400 | Cover-hinge, White |
|
$ 12.65 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 42 | 5304528979 | Shelf, 16.69 X 23.88, Wire (Replaces: 297441905) |
|
Immediately | $ 87.19 | ||||
| 47 | 297192903 | Baffle, Air (Replaces: 297192900) |
|
Immediately | $ 25.31 | ||||
| 49 | 216937701 | Trivet (Replaces: 216937700) |
|
$ 99.77 | |||||
| 50 | 216394050 | Bracket, Fan Motor Mount |
|
$ 22.75 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 297387921 | Grille/kickplate (Replaces: 297387902) |
|
$ 60.96 | |||||
| 73 | 5304495394 | Light Signal, Round, Green |
|
Immediately | $ 28.20 | ||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| 132 | 5304460601 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 152 | 5304511026 | Closer, Bearing Hinge (Replaces: 297416000) |
|
Immediately | $ 10.13 | ||||
| 169 | 216912401 | Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2) |
|
$ 12.76 | |||||
| 170 | 297280400 | Valve, Breather |
|
$ 10.13 | |||||
| 22A | 5303916855 | Tube, Sensor Sleeve, Plastic, Clear |
|
$ 60.96 | |||||
| 28A | 297438300 | Pin, Bottom Hinge |
|
$ 7.23 | |||||
| 42A | 5304538769 | Shelf, 16.69 X 23.88, Wire (Replaces: 297441902) |
|
$ 129.29 | |||||
| 71A | 297146820 | Screw, 8-18ab X.470 Qx |
|
$ 7.33 | |||||
| 93A | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| 93B | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| NI | 125963-48 | Insulation, 24", Drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 30534600 | Clip, Wire (Replaces: 5303313703) |
|
$ 3.79 | |||||
| NI | 5304496712 | Energy Guide |
|
- | |||||
| NI | 5304498525 | Service Data Sheet |
|
- | |||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NIA | 297164650 | Bracket, Lh Leg Levelor |
|
$ 18.43 | |||||
| NIB | 297164651 | Bracket, Rh Leg Levelor |
|
$ 17.51 |
