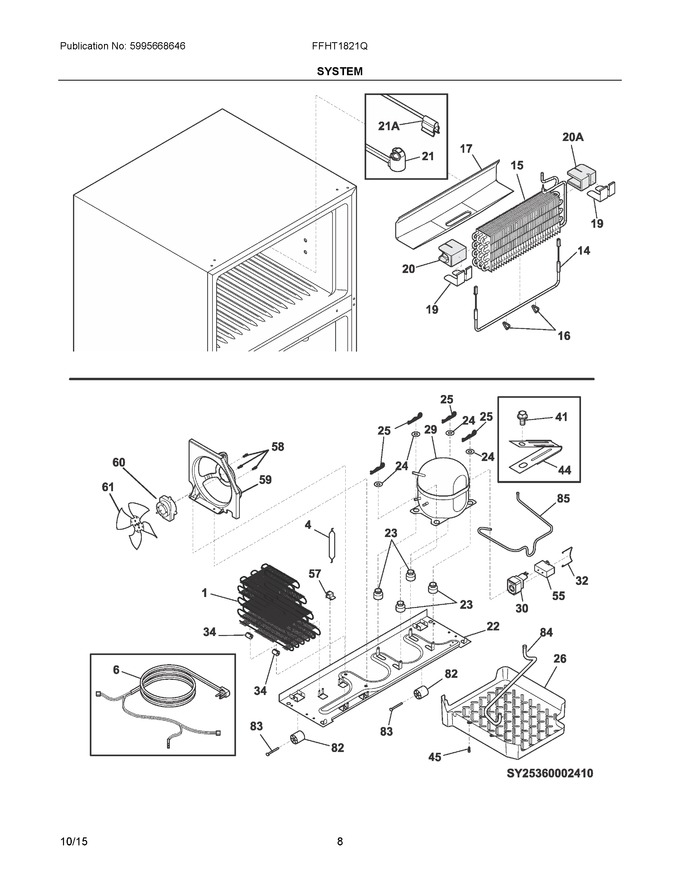

05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502821 | Condenser, High Efficiency |
|
$ 130.41 | |||||
| 4 | 5303305677 | Dryer-filter, W/process Tube (Replaces: 242190201) |
|
Immediately | $ 31.67 | ||||
| 6 | 5304521786 | Harness-wiring, Machine Compt (Replaces: 242019701) |
|
$ 126.65 | |||||
| 14 | 242044008 | Heater-defrost (Replaces: 242044020) |
|
Immediately | $ 33.00 | ||||
| 15 | 5303918274 | Evaporator Kit |
|
Immediately | $ 423.67 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801301 | Trough-drain |
|
$ 64.46 | |||||
| 19 | 242320401 | Shield, Heat, Evap Block |
|
$ 67.49 | |||||
| 20 | 5304527429 | Block, Evaporator, Rh (Replaces: 242238401) |
|
$ 11.22 | |||||
| 21 | 242213501 | Thermostat, Safety, Defrost (Replaces: 242303202) |
|
Immediately | $ 87.84 | ||||
| 22 | 241665504 | Base-compressor |
|
$ 80.09 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 2.84 | |||||
| 26 | 241920605 | Pan-defrost |
|
$ 53.76 | |||||
| 29 | 240550946 | Compressor, W/o Electricals (Replaces: 240550937) |
|
Immediately | $ 396.66 | ||||
| 30 | 241941005 | Starter |
|
$ 114.84 | |||||
| 32 | 297030500 | Clamp, Elec Cont Mtg, Compressor |
|
Immediately | $ 12.05 | ||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433202) |
|
$ 15.17 | |||||
| 44 | 5304456288 | Clamp-wiring Harness, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 59 | 242050604 | Shroud, Condenser Fan |
|
$ 27.64 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 138.56 | ||||
| 61 | 241639502 | Blade-condenser Fan |
|
Immediately | $ 21.99 | ||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 240500801 | Tube-drain, Rubber, Lower |
|
$ 65.21 | |||||
| 85 | 241871501 | Tube-connector, Suction |
|
$ 42.53 | |||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 20A | 5304527430 | Block, Evaporator, Lh (Replaces: 242238301) |
|
$ 11.48 | |||||
| 21A | 242213501 | Thermistor, Temperature, Defrost (Replaces: 242290502) |
|
Immediately | $ 87.84 | ||||
| 22A | 241665606 | Base-compressor, W/rollers |
|
$ 194.14 | |||||
| 41A | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NI | 5303918222 | Hot Tube Repair Kit, Service |
|
$ 418.12 | |||||
| NI | 5303918263 | Heat Exchanger Kit, Suction Line |
|
$ 461.16 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 29.77 | |||||
| NIA | 5304523788 | Harness, Wiring, Frzr Section (Replaces: 5304503321) |
|
Immediately | $ 38.56 | ||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 | |||||
| NIB | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 |
