View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

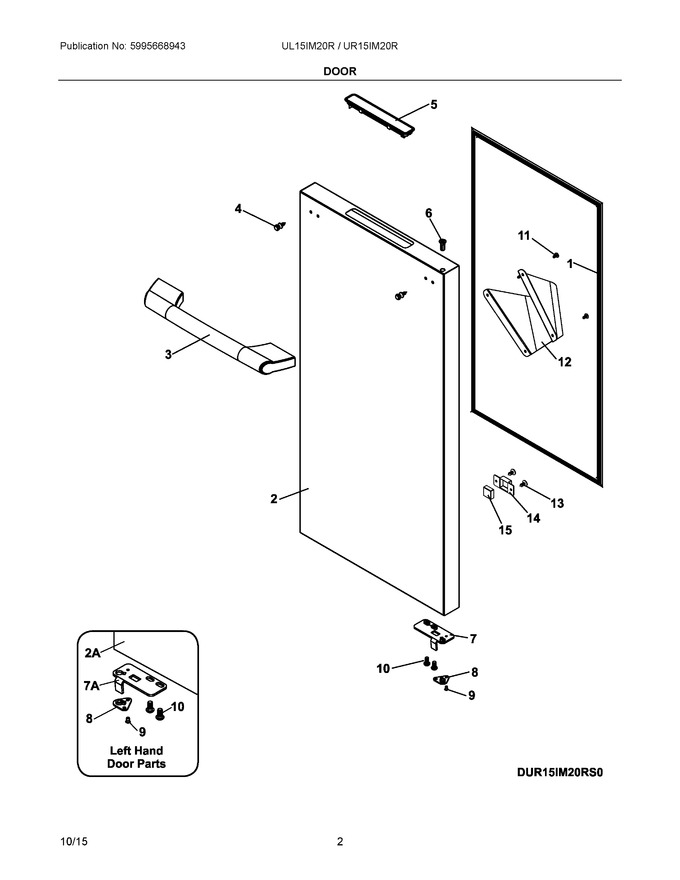

02 - Door
03 - Cabinet Front
04 - Cabinet Rear / Control
05 - Cooling System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304503773 | Gasket, Magnetic, Black |
|
- | |||||
| 2 | 5304503774 | Door Assembly, Rh Swing, Stainless |
|
- | |||||
| 3 | 5304503776 | Handle, Door |
|
- | |||||
| 4 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 5 | 5304503777 | User Interface, Assembly |
|
$ 541.28 | |||||
| 6 | 5304496809 | Bushing, Hinge Pin, Grey, Upper |
|
$ 37.05 | |||||
| 7 | 5304503778 | Stop, Door, Rh Swing |
|
- | |||||
| 8 | 5304496812 | Cam, Follower, Door Closer |
|
$ 36.86 | |||||
| 9 | 5304496813 | Rivet, Pop, 1/8", Steel |
|
- | |||||
| 10 | 5304503780 | Screw, Btn Head, 1/4-20 X 1/2", Machine |
|
- | |||||
| 11 | 5304496816 | Screw, Ph Pan Head, #8-15 X 3/8 |
|
- | |||||
| 12 | 5304503781 | Holder, Ice Scoop |
|
- | |||||
| 13 | 5304503782 | Button, Plug |
|
- | |||||
| 14 | 5304503783 | Retainer, Magnet |
|
- | |||||
| 15 | 5304503784 | Magnet |
|
- | |||||
| NIA | 5304503432 | Handle Kit, Door, Icon Style, Optional Kit |
|
- |
