02 - Cabinet And Component Parts

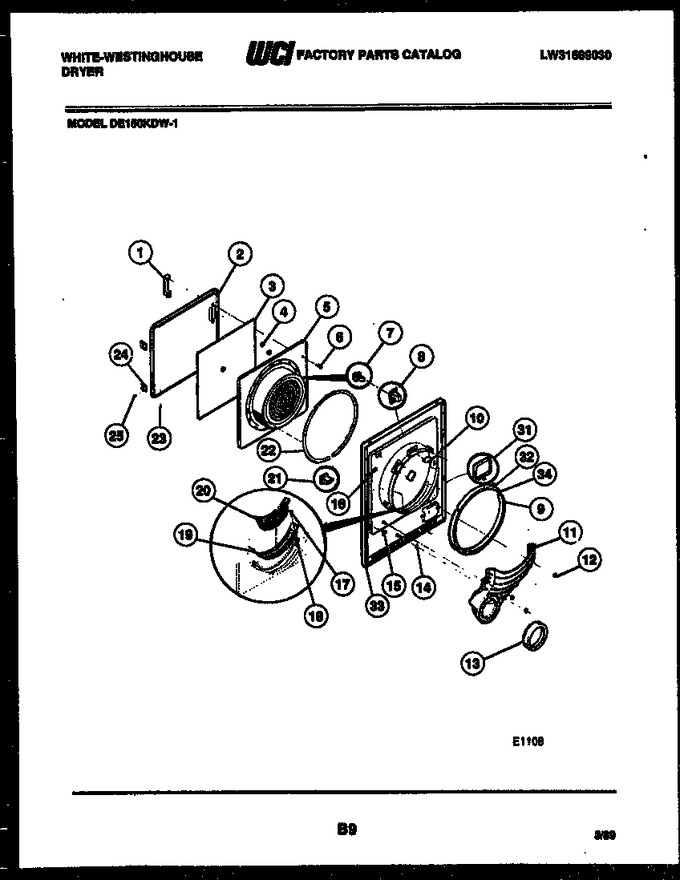

03 - Door Parts


04 - Door And Installation Parts


05 - Motor And Blower Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3281053		Handle		Appelez-nous	-
2	3201204		Outer Door-almond		Appelez-nous	-
3	3281067		Heat Shield		Appelez-nous	-
4	3201205		Spacer		Appelez-nous	-
4	3281058		Spacer		Appelez-nous	-
5	3201207		Inner Door, Almond		Appelez-nous	-
6	3281051		Screw		Appelez-nous	-
7	F141736-000		Door Strike		Appelez-nous	-
8	3202755		Door Catch		Appelez-nous	-
9	3281049		Seal		Appelez-nous	-
10	F141811-000		Glide		Appelez-nous	-
11	08015173		Air Duct		Appelez-nous	-
12	3281089		Nut		Appelez-nous	-
13	134417000		Seal   (Replaces: 3281013)			Immediately	$ 9.22
14	3201209		Washer		Appelez-nous	-
15	3281074		Clip-guide		Appelez-nous	-
16	3281039		Clip		Appelez-nous	-
17	3281178		Screw		Appelez-nous	-
18	3281061		Clip				$ 2.73
19	3281060		Lint Trap Frame		Appelez-nous	-
20	3281059		Lint Trap		Appelez-nous	-
21	3281044		Door Switch		Appelez-nous	-
22	3201210		Door Gasket		Appelez-nous	-
23	3281176		Screw		Appelez-nous	-
24	3281050		Door Hinge		Appelez-nous	-
25	3281176		Screw		Appelez-nous	-
31	3201213		Access Door-almond		Appelez-nous	-
32	3281066		Screw		Appelez-nous	-
33	3203242		Front Panel (almond)		Appelez-nous	-
34	3201264		Spacer				$ 7.77
