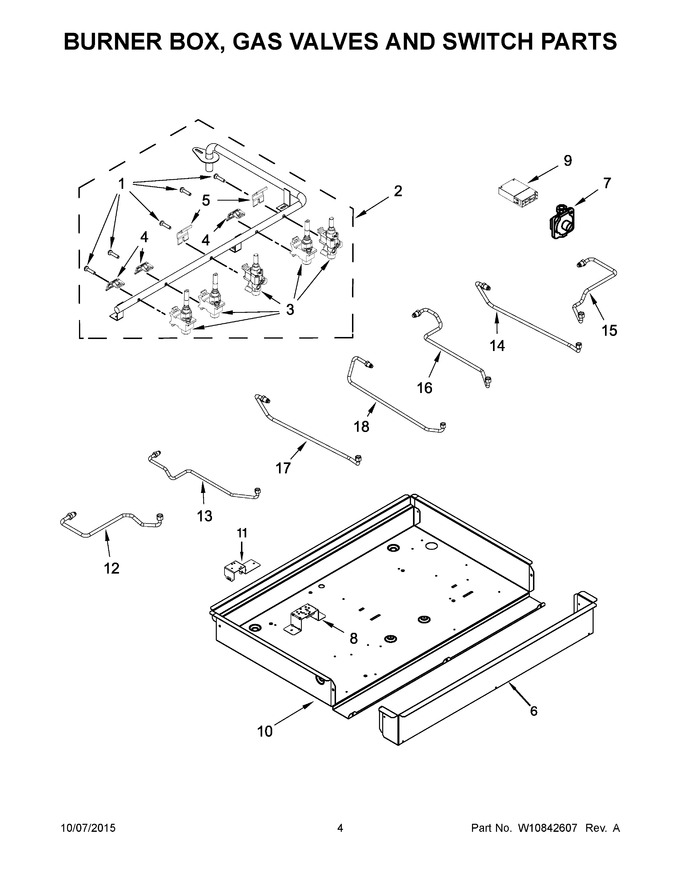

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.15
2	W10682074		Assembly, Manifold				$ 370.45
3	W11209791		Valve, Single (left Front)   (Replaces: W10717630)			Immediately	$ 236.01
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10714775		Panel, Front   (Replaces: W10705474)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 219.54
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 19.29
12	W10545796		Tubing, Gas Burner (left Front)				$ 70.85
13	W10545797		Tubing, Gas Burner (left Rear)				$ 70.60
14	W10545843		Tubing, Gas Burner (right Front, Main)				$ 72.72
15	W10545844		Tubing, Gas Burner (right Front, Simmer)				$ 73.55
16	W10545798		Tubing, Gas Burner (right Rear)				$ 75.20
17	W10545801		Tubing, Gas Burner (center, Main)				$ 71.31
18	W10545800		Tubing, Gas Burner (center, Simmer)				$ 71.30
3A	W10717631		Valve, Single (left Rear)				$ 225.88
3B	W10717628		Valve, Single (right Rear)				$ 225.98
3C	W11199023		Valve, Dual (right Front & Center)   (Replaces: W10717629)				$ 134.24
NI	W10853432		Kit, Lp Conversion   (Replaces: W10676662)			Immediately	$ 74.21
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10577591		Harness, Main				$ 83.10
NI	W11804912		Harness, Switch   (Replaces: W10619016)				$ 516.95
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 58.91
