01 - Cover Sheet

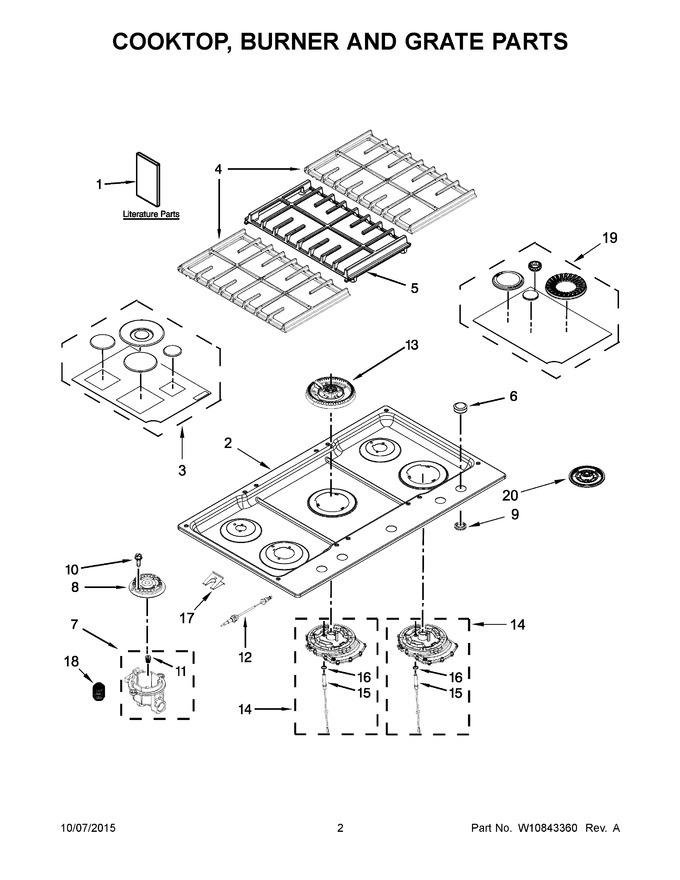

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597142 | Guide, Use & Care |
|
- | |||||
| 2 | W10722087 | Cooktop (stainless) |
|
$ 358.25 | |||||
| 3 | W10831828 | Kit, Burner Cap (black) (Replaces: W10617346) |
|
Immediately | $ 243.80 | ||||
| 4 | W10861522 | Assembly, Side Grate (Replaces: W10583859) |
|
$ 276.18 | |||||
| 5 | W11105133 | Grate, Center (Replaces: W10583861) |
|
$ 142.12 | |||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 79.76 | ||||
| 7 | W10674921 | Holder, Orifice (12k) (left Front) |
|
$ 66.47 | |||||
| 8 | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 9 | W11117438 | Bezel, Knob (Replaces: W10593530) |
|
Immediately | $ 49.44 | ||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10791079 | Orifice (left Front) (Replaces: W10409144) |
|
$ 80.11 | |||||
| 12 | W10628302 | Wiring, Electrode (left Front) |
|
$ 71.93 | |||||
| 13 | W10836409 | Spreader, Burner (Replaces: W10808715) |
|
Immediately | $ 115.45 | ||||
| 14 | W11173537 | Assembly, Burner Base (10k) (right Front) (Replaces: W10617373) |
|
Immediately | $ 166.96 | ||||
| 15 | W11721763 | Electrode, Burner (right Front) (Replaces: W10657995) |
|
Immediately | $ 39.94 | ||||
| 16 | W10416057 | O-ring |
|
$ 66.97 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 18 | W11690598 | Spring, Torch Burner (Replaces: W10554297) |
|
$ 18.06 | |||||
| 19 | W10836474 | Kit, Burner Cap (black (includes Melt Cap)) (Replaces: W10635601) |
|
Immediately | $ 346.10 | ||||
| 20 | W11678108 | Support, Flame Spreader (Replaces: W10631209) |
|
$ 74.54 | |||||
| 11A | W10151353 | Orifice (left Rear) |
|
- | |||||
| 11B | W11727825 | Orifice (right Rear) (Replaces: W10674728) |
|
$ 28.48 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 12B | W10628303 | Wiring, Electrode (right Rear) |
|
$ 78.47 | |||||
| 14A | WPW10639175 | Assembly, Burner Base (20k) (center) (Replaces: W10639175) |
|
Immediately | $ 248.90 | ||||
| 15A | W11610134 | Electrode, Burner (center) (Replaces: W10657994) |
|
Immediately | $ 26.78 | ||||
| 1A | W10597144 | Instructions, Installation |
|
- | |||||
| 1B | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W10733303 | Instructions, Conversion |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 7A | W10674918 | Holder, Orifice (6k) (left Rear) |
|
Immediately | $ 28.02 | ||||
| 7B | W10674919 | Holder, Orifice (7k) (right Rear) |
|
$ 30.08 | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11763721 | Griddle (Replaces: W10662080) |
|
$ 91.28 | |||||
| NI | W10617402 | Insulation, Cooktop |
|
$ 201.74 |
