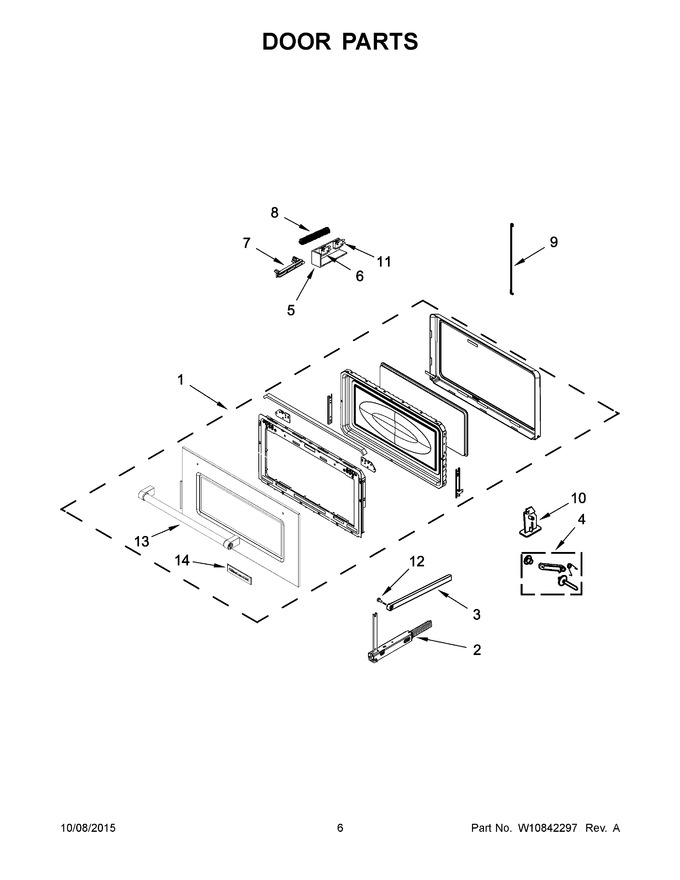

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10696352 | Assembly, Door (black) |
|
$ 454.56 | |||||
| 2 | W11700293 | Hinge, Door (Replaces: 461968979591) |
|
Immediately | $ 65.96 | ||||
| 3 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 86.18 | |||||
| 4 | WPW10128850 | Pin, Damper (Replaces: 251968600013) |
|
Immediately | $ 121.78 | ||||
| 5 | WP8205683 | Holder, Switch (Replaces: 461967750452) |
|
Immediately | $ 89.47 | ||||
| 6 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 47.16 | ||||
| 7 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 6.27 | ||||
| 8 | W11715912 | Spring, Cam (Replaces: 423107570871) |
|
Immediately | $ 6.44 | ||||
| 9 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 61.97 | |||||
| 10 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 13.30 | ||||
| 11 | W10211972 | Switch, Door (Replaces: 4375346) |
|
Immediately | $ 47.16 | ||||
| 12 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 121.78 | ||||
| 13 | W10737395 | Assembly, Handle (stainless) |
|
- | |||||
| 14 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 1A | W11243152 | Assembly, Door (stainless) (Replaces: W10731697) |
|
$ 536.55 |
