01 - Cover Sheet

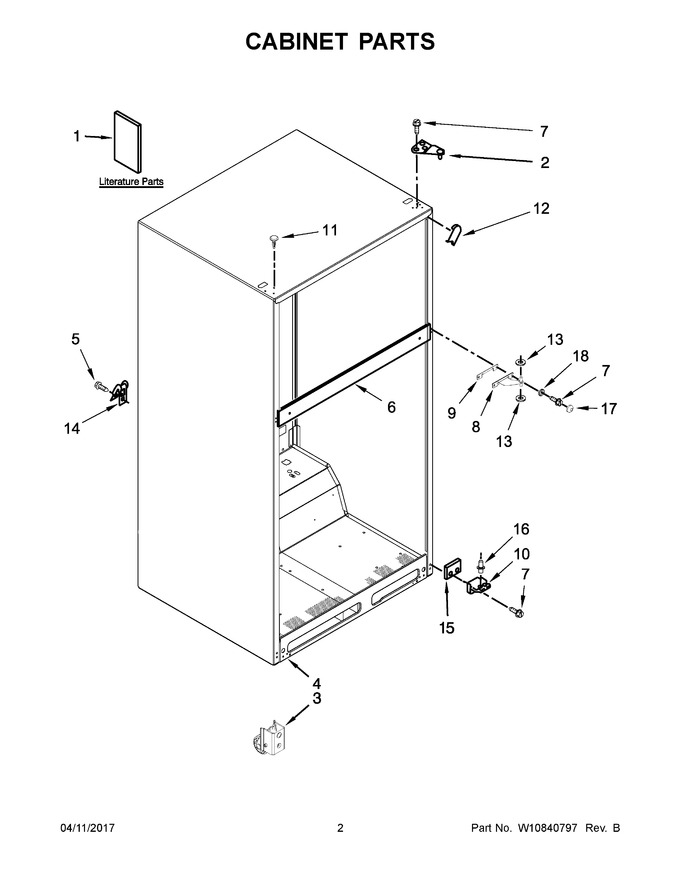

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10761080 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2166037 | Assembly, Hinge (center) (Replaces: 2166086) |
|
$ 70.34 | |||||
| 9 | 2166043 | Shim, Hinge Center (white) |
|
$ 59.80 | |||||
| 10 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 11 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 12 | W10859322 | Filler, Wrapper (white) (Replaces: 2166003) |
|
$ 6.93 | |||||
| 13 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 15 | WP2201567 | Shim, Hinge (bottom) (Replaces: 2201567) |
|
$ 6.99 | |||||
| 16 | WP2325483 | Pin, Hinge (bottom) (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 17 | W10846529 | Dome Cap (white) (Replaces: W10674771) |
|
Immediately | $ 16.99 | ||||
| 18 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 9.66 | |||||
| 1A | W10679599 | Use And Care Guide |
|
- | |||||
| 1B | W10657306 | Energy Label |
|
- |
