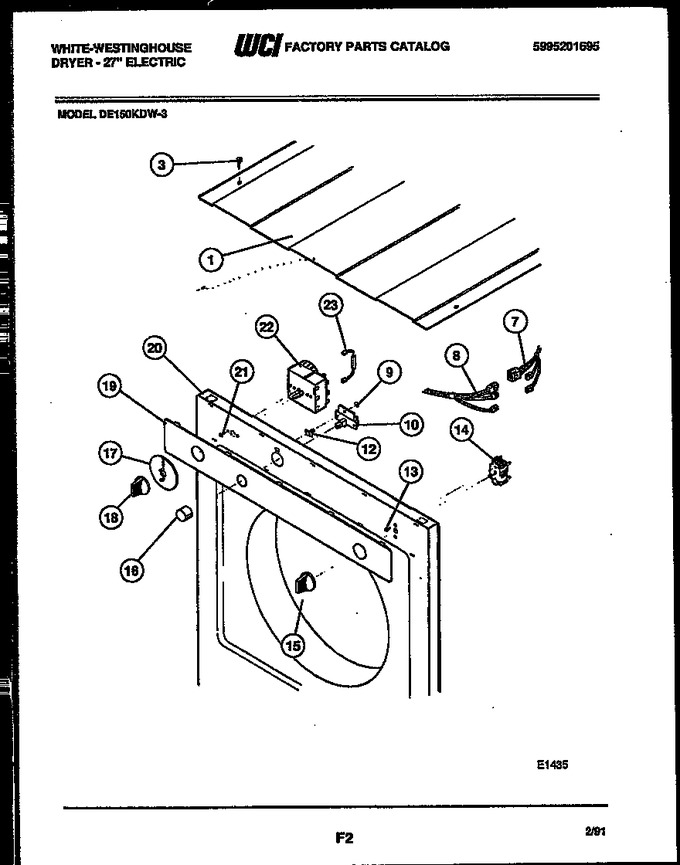

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206232		Top Plate		Appelez-nous	-
3	3281041		Screw		Appelez-nous	-
7	5303269967		Harness-main		Appelez-nous	-
8	5303270874		Harness-component		Appelez-nous	-
9	3281089		Nut		Appelez-nous	-
10	3203292		Start Switch		Appelez-nous	-
12	3281092		Quickey Bolt		Appelez-nous	-
13	3281101		Screw		Appelez-nous	-
14	3281100		Selector Switch		Appelez-nous	-
15	5300633724		Knob		Appelez-nous	-
16	3201221		Push Button		Appelez-nous	-
17	08027433		Dial		Appelez-nous	-
18	08015435		Knob		Appelez-nous	-
19	5300633782		Trimplate		Appelez-nous	-
20	5303270872		Front Panel-white		Appelez-nous	-
21	3281096		Screw		Appelez-nous	-
22	Q000634303		Timer		Appelez-nous	-
23	3281110		Resistor		Appelez-nous	-
*41333	3281171		Screw (2) (stacking Parts)		Appelez-nous	-
*41333	3281173		Bracket (2) (stacking Parts)		Appelez-nous	-
*41333	3281035		Screw (4) (stacking Parts)		Appelez-nous	-
*41333	3281272		Washer (2) (stacking Parts)		Appelez-nous	-
*41334	3203253		Instructions (stacking Parts)		Appelez-nous	-
22A	3281021		Shield-timer (non-illustrated)		Appelez-nous	-
22B	3281022		Ratchet Fstnr-shield (non-illustrated)		Appelez-nous	-
7A	3281103		Wire Tie (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
