SELECT A DIAGRAM

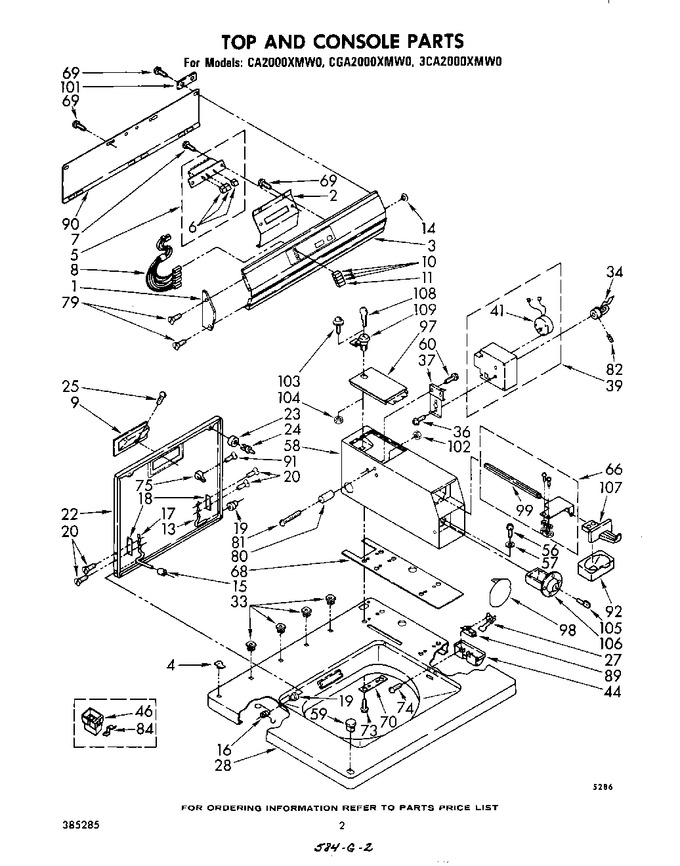

02 - Top And Console


03 - Drive


04 - Cabinet


05 - Tub And Basket


06 - Gearcase


07 - Basket Drive And Brake


08 - Miscellaneous , Water Pump , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	385799		Cap, End (l.h.)		Appelez-nous	-
2	358628		Bracket, Control		Appelez-nous	-
3	385796		Billboard, Console		Appelez-nous	-
4	353878		Nut, Push-in (1)		Appelez-nous	-
5	385749		Switch, Cycle Selector		Appelez-nous	-
6	385798		Pushbutton (3)		Appelez-nous	-
7	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
8	385704		Indicator Lights Assembly		Appelez-nous	-
9	379887		Handle, Lid (new Avocado)		Appelez-nous	-
9	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
9	379884		Handle, Lid (white)		Appelez-nous	-
9	379885		Handle, Lid (almond)		Appelez-nous	-
10	301006		Lens, Amber (3)		Appelez-nous	-
11	358741		Lens, Yellow (1)		Appelez-nous	-
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	54690		Plug, Button		Appelez-nous	-
15	19119		Bumper, Lid Hinge				$ 5.75
16	DE81-05611A		Spring, L.h.   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw & Washer (4)   (Replaces: 355274)			Immediately	$ 6.47
22	382794		Lid (new Avocado)		Appelez-nous	-
22	382793		Lid (almond)		Appelez-nous	-
22	382792		Lid (white)		Appelez-nous	-
22	382795		Lid (golden Harvest)		Appelez-nous	-
23	356908		Bumper (2)				$ 8.35
24	WP356907		Rivet, Plastic (2)   (Replaces: 356907)				$ 6.66
25	359243		Screw		Appelez-nous	-
27	370959		Switch Actuator Assembly				$ 33.01
28	385564		Top (white)		Appelez-nous	-
28	385565		Top (almond)		Appelez-nous	-
28	385566		Top (new Avocado)		Appelez-nous	-
28	385567		Top (golden Harvest)		Appelez-nous	-
33	98219		Nut, Push-in (4)		Appelez-nous	-
34	385571		Clutch, Timer				$ 42.89
36	WP356418		Screw, 10-32 X 5/16 (2)   (Replaces: 96435)				$ 7.13
37	385575		Bracket, Timer				$ 94.31
39	385732		Timer, 60 Hz. (120 Volt) (use W/models Ca2000xmw0 & Gca2000xmw0)		Appelez-nous	-
39	385734		Timer, 50 Hz. (240 Volt) (use W/model 3ca2000xmw0)		Appelez-nous	-
41	386008		Motor, Timer (60 Hz.) (use W/timer 385732)		Appelez-nous	-
41	386010		Motor, Timer (50 Hz.) (use W/timer 385734)		Appelez-nous	-
44	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
46	94697		Cap, Terminal		Appelez-nous	-
56	356599		Bolt, 5/16-24 X 3/4 (4)		Appelez-nous	-
57	138485		Lockwasher, 5/16		Appelez-nous	-
58	385506		Meter Case Assembly (almond)		Appelez-nous	-
58	385508		Meter Case Assembly (golden Harvest)		Appelez-nous	-
58	385505		Meter Case Assembly (white)		Appelez-nous	-
58	385507		Meter Case Assembly (new Avocado)		Appelez-nous	-
59	385746		Plug, Lock Hole		Appelez-nous	-
60	339805		Screw, 10-32 X 3/16 (2)				$ 12.05
66	385558		Slide, Extension Bag Assembly		Appelez-nous	-
68	WP3954812		Cushion, Console   (Replaces: 385529)				$ 27.99
69	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
70	DD81-03277A		Plate & Nut Assembly (2)   (Replaces: 83701)				$ 1.66
73	90057		Screw (2)		Appelez-nous	-
74	354764		Screw & Washer		Appelez-nous	-
75	357633		Strike, Lid Switch		Appelez-nous	-
79	WP355515		Screw (2)   (Replaces: 98057)				$ 6.90
80	357725		Stop, Lid		Appelez-nous	-
81	132926		Screw, 10-32 X 1-1/4		Appelez-nous	-
82	98654		Setscrew, 10-32		Appelez-nous	-
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
90	356441		Panel, Rear Billboard		Appelez-nous	-
91	354975		Screw & Washer		Appelez-nous	-
92	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
97	385758		Door, Service (almond)		Appelez-nous	-
97	385759		Door, Service (new Avocado)		Appelez-nous	-
97	385760		Door, Service (golden Harvest)		Appelez-nous	-
97	W11283272		Door, Service (white)   (Replaces: 385757)				$ 95.29
98	376429		Plate, Money Box Cover		Appelez-nous	-
99	WP8576635		Bolt, Slide Mechanism   (Replaces: 385559)			Immediately	$ 67.13
101	357856		Strap, Support		Appelez-nous	-
102	120614		Nut, 10-24		Appelez-nous	-
103	358409		Screw & Washer Assembly		Appelez-nous	-
104	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33

    View Diagram in Separate Window       Print Part List
