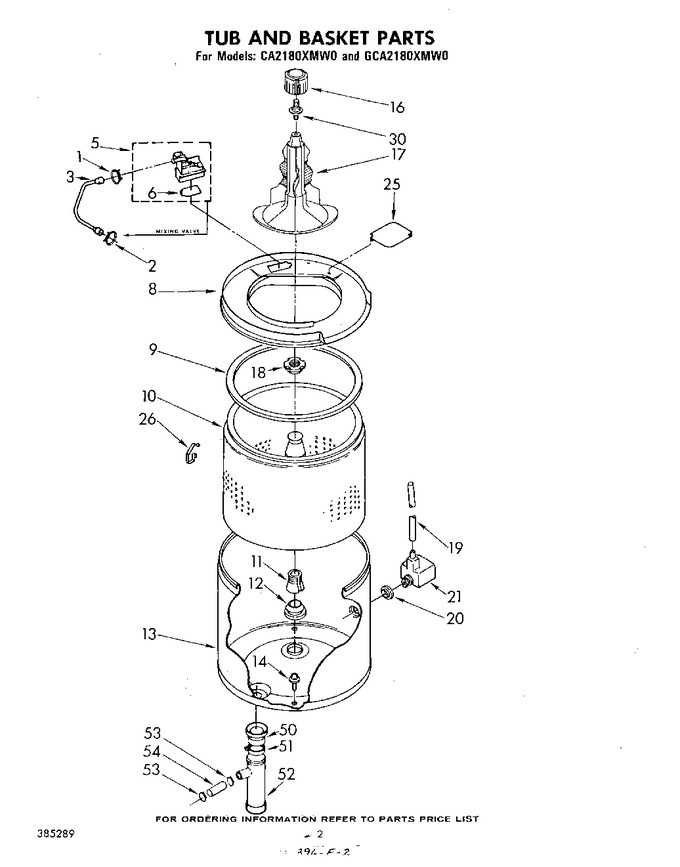

02 - Tub And Basket


03 - Water Pump


04 - Top, Lid And Control Box


05 - Drive


06 - Console


07 - Cabinet


08 - Miscellaneous , Literature And Optional


09 - Wiring Harness


10 - Gearcase


11 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp   (Replaces: 353366)			Immediately	$ 7.56
2	WP596669		Clamp   (Replaces: 353367)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
5	366072		Inlet, Water		Appelez-nous	-
6	355584		Flapper		Appelez-nous	-
8	381971		Ring & Filter, Tub (includes Illus. 25)		Appelez-nous	-
9	383553		Seal, Tub Ring		Appelez-nous	-
10	384024		Basket		Appelez-nous	-
11	WP389140		Block, Drive   (Replaces: 357782)			Immediately	$ 24.74
12	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
13	384074		Tub		Appelez-nous	-
14	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
16	359990		Agitator Cap Assembly		Appelez-nous	-
17	383951		Agitator & Insert Assembly		Appelez-nous	-
18	WP21366		Nut, Lock   (Replaces: 21366)			Immediately	$ 8.00
19	WP353244		Hose, Pressure Switch   (Replaces: 355221)			Immediately	$ 53.94
20	351830		Seal				$ 5.84
21	360804		Air Dome Assembly		Appelez-nous	-
25	355852		Plate, Snubber		Appelez-nous	-
26	359763		Clip, Tub Ring (4)		Appelez-nous	-
30	358440		Stud & Seal, Agitator Shaft		Appelez-nous	-
50	93553		Hose, Tub Outlet		Appelez-nous	-
51	9421321		Clamp, Hose		Appelez-nous	-
52	84091		Manifold		Appelez-nous	-
53	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
54	DE81-06162A		Hose, Pump To Sump   (Replaces: 92231)				$ 78.75

    View Diagram in Separate Window       Print Part List
