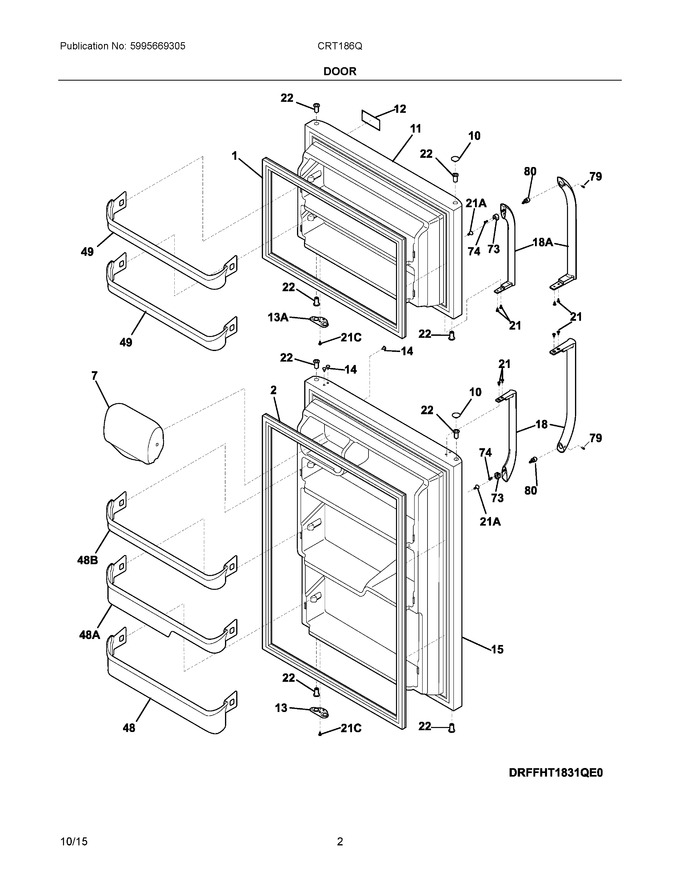

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193203		Gasket-frzr Door, White, Magnetic			Immediately	$ 197.62
2	242193206		Gasket-refr Door, White, Magnetic			Immediately	$ 197.62
7	240337712		Door-dairy			Immediately	$ 36.41
10	240381301		Plug-button, White, Hinge Brg Hole, (2)			Immediately	$ 18.95
11	240410201		Door-frzr, White, Complete Assy				$ 466.82
12	242115801		Nameplate, Crosley		Appelez-nous	-
13	240312421		Door Stop, White, Ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
15	241798501		Door-refr, White, Complete Assy   (Replaces: 240410301)			Immediately	$ 543.29
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507146		Bearing-hinge, Natural Color   (Replaces: 240527101)			Immediately	$ 7.59
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
48	240338101		Bin-door			Immediately	$ 52.37
49	240495804		Bin-door, Pseudo, Frzr			Immediately	$ 43.29
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	240312414		Door Stop, White, Frzr				$ 19.13
18A	218428101		Handle-door, White, W/block & Screw			Immediately	$ 22.73
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 30.20
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
