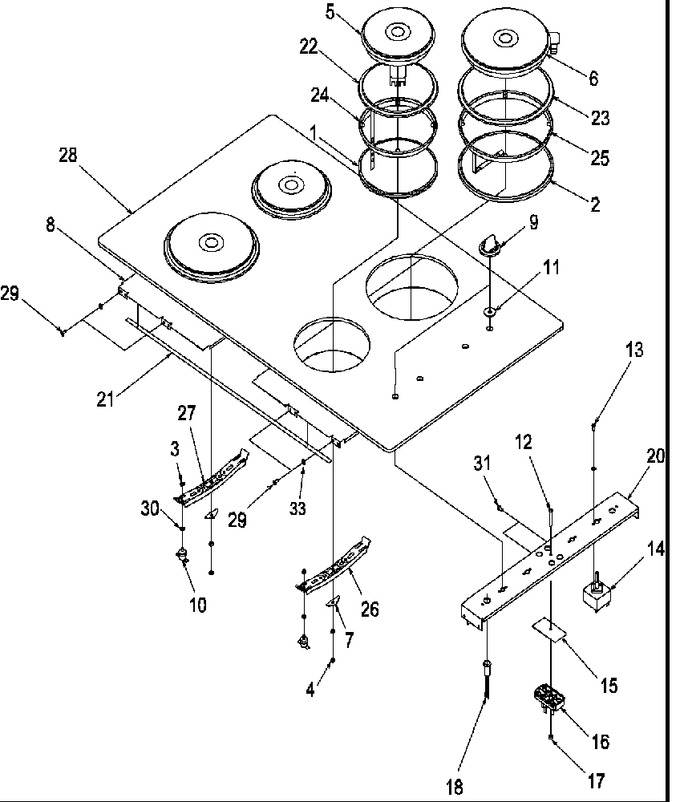

01 - Cooktop Assy


02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5036801		Gasket		Appelez-nous	-
2	B5036802		Gasket		Appelez-nous	-
3	M0294301		Nut		Appelez-nous	-
4	M0294302		Nut		Appelez-nous	-
5	WP3147131		Element, Small   (Replaces: D8600001)				$ 244.76
6	D8600002		Element, Large		Appelez-nous	-
7	A4431801		Washer		Appelez-nous	-
8	D8600903		Glass Support Pnt		Appelez-nous	-
9	WPD8598001		Knob, Control   (Replaces: D8598001)				$ 42.61
10	B5036401		Tco-element		Appelez-nous	-
11	B5037602		Cover, Control Hole K				$ 5.02
12	M0202521		Screw		Appelez-nous	-
13	W11214483		Screw, Mach   (Replaces: M0202321)				$ 12.62
14	C2740702		Control, Surface		Appelez-nous	-
15	A4402901		Insulation, Ind. Light		Appelez-nous	-
16	C2702603		Light, Indicator		Appelez-nous	-
17	M0281002		Nut A		Appelez-nous	-
18	10005401		Indicator Light		Appelez-nous	-
20	D8596804		Control Mtg Bracket		Appelez-nous	-
21	M0275044		Tape, Vinyl		Appelez-nous	-
22	C2740301		Ring Small Trim (black)		Appelez-nous	-
23	C2740302		Ring Large Trim (black)		Appelez-nous	-
24	C2740401		Gasket, Ring		Appelez-nous	-
25	C2740402		Gasket, Ring		Appelez-nous	-
26	C2740501		Bracket, Small Element		Appelez-nous	-
27	C2740601		Bracket, Large Element		Appelez-nous	-
28	D8599505		Top, Glass		Appelez-nous	-
29	M0210418		Screw		Appelez-nous	-
30	M0272803		Lock Washer		Appelez-nous	-
31	M0211519		Screw		Appelez-nous	-
33	M0272803		Lock Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
