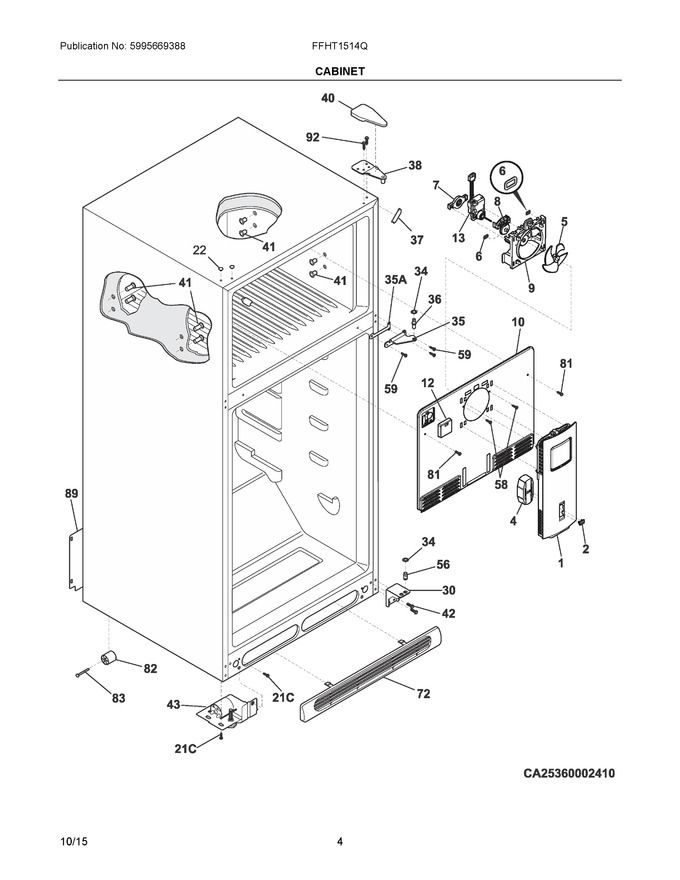

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242230902		Cover, Evaporator Fan				$ 82.05
2	242249002		Knob, Sliding, Damper   (Replaces: 242229401)			Immediately	$ 211.91
4	242294704		Damper, Fan Cover   (Replaces: 242229501)				$ 100.48
5	242219302		Fan Blade, Evaporator			Immediately	$ 17.44
6	5304497413		Ring, Locking, (2)			Immediately	$ 5.31
7	242287501		Grommet, Evaporator Fan, Rear			Immediately	$ 17.72
8	242237301		Grommet, Evaporator Fan, Front				$ 17.44
9	242229301		Shroud Bracket, Evaporator Fan			Immediately	$ 30.47
10	242229804		Cover, Evaporator Coil				$ 63.13
12	242249201		Cover, Connection, Ice Maker				$ 16.39
13	242077705		Motor, Evaporator Fan, Blower   (Replaces: 242219201)			Immediately	$ 142.27
22	215774901		Plug-button, White, Upr Hinge Holes			Immediately	$ 18.20
30	240314011		Bracket-lower Hinge, White   (Replaces: 240314002)			Immediately	$ 77.26
34	240311303		Washer, Hinge, Nylon, (2)			Immediately	$ 10.62
35	240313802		Bracket-ctr Hinge, White			Immediately	$ 70.16
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161201		Trim-cabinet Corner, White, (2)			Immediately	$ 2.93
38	240313703		Bracket-upper Hinge			Immediately	$ 32.27
40	240354401		Cover-upper Hinge, White				$ 61.56
41	5304500407		Grommet, Shelf Mtg			Immediately	$ 6.38
42	240578904		Screw, Hex Head, 1/4-20 X 5/8, White				$ 10.62
43	241889002		Roller Assy, Front Lh, (2)				$ 63.08
56	240516502		Pin-lower Hinge				$ 72.80
58	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
59	240442708		Screw-#10-32 X 3/4, White				$ 8.34
72	240368301		Grille/kickplate, White			Immediately	$ 69.46
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	241733906		Cover-access, With Label				$ 51.17
90	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
35A	240336802		Spacer-hinge, Center, White			Immediately	$ 18.43
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NIA	241889001		Roller Assy, Front Rh, (2)				$ 64.46
NIA	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NIA	241586701		Plug, Round, Foam, Ice Maker, Water Inlet				$ 17.72
NIA	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
NIA	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NIB	218515401		Clip-grille				$ 17.72
NIC	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
NID	5304523788		Harness, Wiring, Frzr Section   (Replaces: 5304503321)			Immediately	$ 38.56
