SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

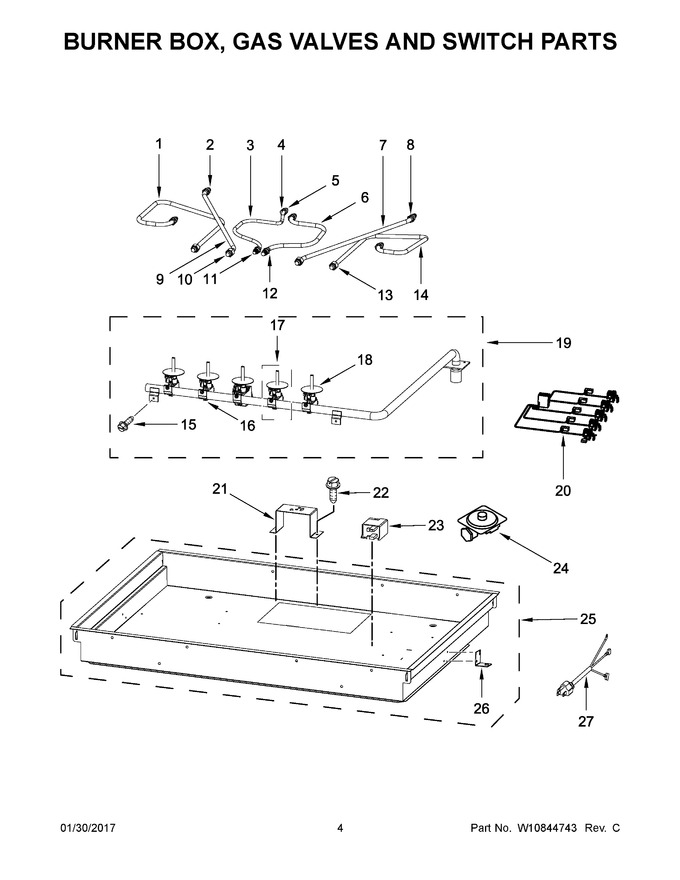

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10845869		Tubing, Burner (left Front)		Appelez-nous	-
2	W10575399		Ferrule, Injector		Appelez-nous	-
3	W10845891		Tubing, Burner (center Simmer)		Appelez-nous	-
4	W10692377		Nut, Compression 1/4" Tubing		Appelez-nous	-
5	W10845603		Ferrule, Dual Injector		Appelez-nous	-
6	W10845892		Tubing, Burner (center)		Appelez-nous	-
7	W10845893		Tubing, Burner (right Rear)		Appelez-nous	-
8	W10575398		Nut, Injector		Appelez-nous	-
9	W10845882		Tubing, Burner (left Rear)		Appelez-nous	-
10	8190917		Sleeve, Compresson		Appelez-nous	-
11	W10692371		Sleeve, Compression 1/4" Tubing		Appelez-nous	-
12	W10692372		Nut, Compression		Appelez-nous	-
13	8190918		Nut, Compression		Appelez-nous	-
14	W10845894		Tubing, Burner (right Front)		Appelez-nous	-
15	W10617476		Screw, Valves		Appelez-nous	-
16	W10617475		Bracket, Valve		Appelez-nous	-
17	W10691432		Valve, Gas (left Front)		Appelez-nous	-
18	8190911		Washer (spark Switch)		Appelez-nous	-
19	W10845235		Assembly, Manifold		Appelez-nous	-
20	W10845776		Harness, Switch				$ 134.71
21	W10845767		Bracket, Orifice Holder		Appelez-nous	-
22	W10626012		Screw		Appelez-nous	-
23	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
24	WPW10569189		Regulator, Gas   (Replaces: W10569189)			Immediately	$ 226.67
25	W10845798		Assembly, Burner Box		Appelez-nous	-
26	8190978		Bracket, Mounting				$ 81.04
27	W10392007		Cord, Power   (Replaces: W10618502)				$ 96.25
17A	W10691431		Valve, Gas (right Front)				$ 161.75
17B	W10691438		Valve, Gas (center)				$ 315.20
17C	W10691437		Valve, Gas (left Rear, Right Rear)				$ 162.80
21A	W10845230		Bracket, Orifice Holder (center)		Appelez-nous	-
NI	W10691233		Cap, Burner (melt Small Burner)				$ 319.72
NI	W10686634		Kit, Orifice Lp Conversion				$ 274.42
NI	W10686630		Kit, Orifice Lp High Altitude Conversion				$ 69.69
NI	W10686629		Kit, Orifice Ng High Altitude Conversion		Appelez-nous	-
NI	W11628754		Gasket (cooktop Mounting)   (Replaces: 8190977)				$ 142.44
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10845779		Harness, Main		Appelez-nous	-
NI	W10618504		Relief, Strain				$ 28.87
NI	W10625907		Screw, Burner Box Mounting (8-32 X 3/8" Pan Head)				$ 20.40
NI	W10625905		Screw, Manifold Pipe Mounting (8 X 3/8" Pan Head)				$ 17.21
