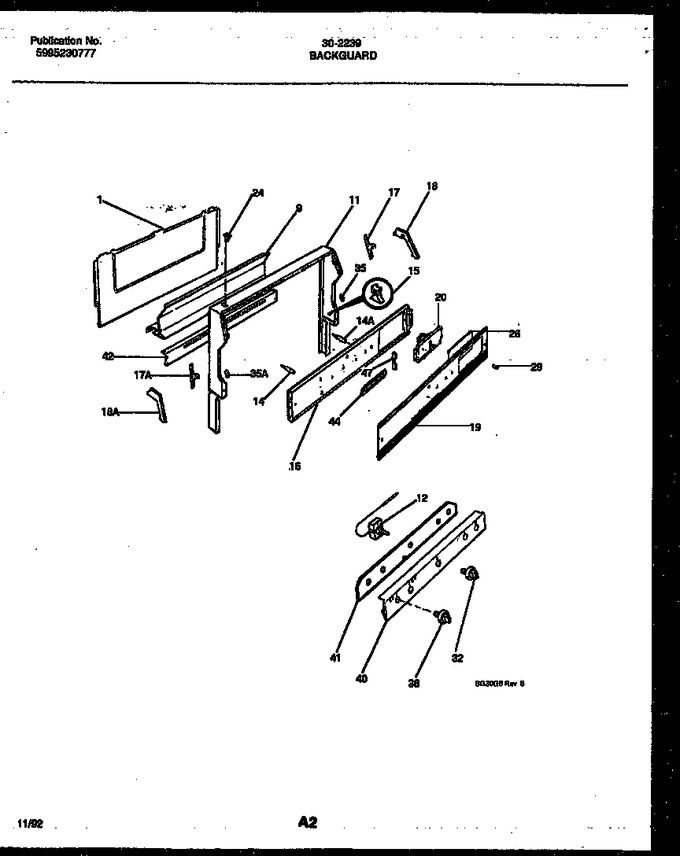

02 - Backguard


03 - Burner Parts


04 - Cooktop And Broiler Drawer Parts


05 - Door Parts


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	3201702		Trim-splasher, Almond		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		Cap-end Rh		Appelez-nous	-
19	3205113		Panel-control, Metal		Appelez-nous	-
20	3204748		Clock/timer, Analog 1 Stem		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
26	5303208985		Lens-clock, Glass		Appelez-nous	-
29	3131472		Knob-clock (3)		Appelez-nous	-
32	3205115		Knob, Thermostat		Appelez-nous	-
35	3203077		Cap End-rh		Appelez-nous	-
36	3205103		Knob, Top Valve, (4)		Appelez-nous	-
40	5303271189		Panel-manifold		Appelez-nous	-
41	3203443		Cover-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		Cap-end Lh		Appelez-nous	-
35A	3203076		Cap End-lh		Appelez-nous	-
