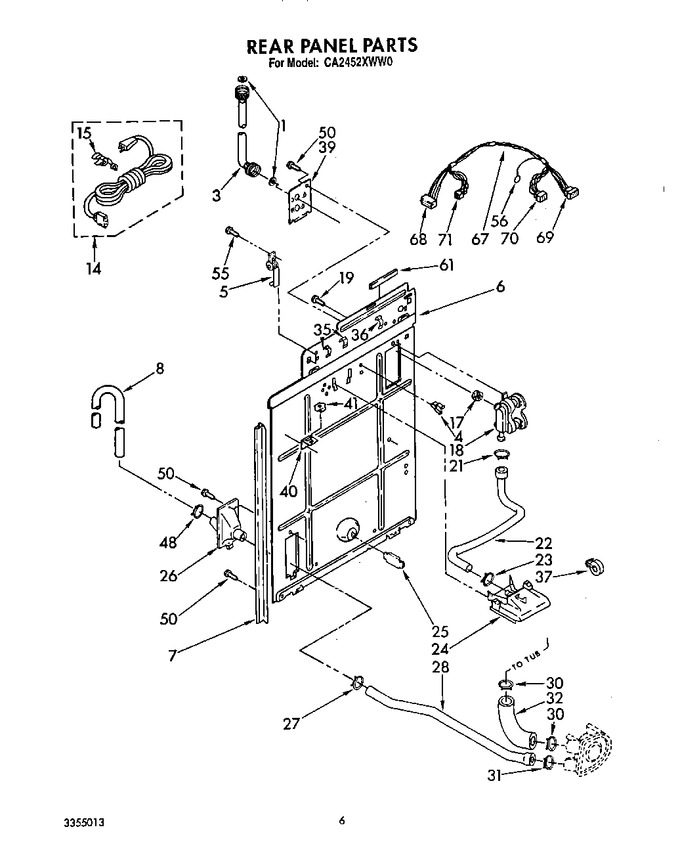

05 - Rear Panel


06 - Agitator, Basket And Tub


07 - Miscellaneous


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Wiring Harness


11 - Brake And Drive Tube


12 - Gearcase


13 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
3	WP89503		(alt.)   (Replaces: 385057)			Immediately	$ 21.68
3	WP89503		(alt.)   (Replaces: 81339)			Immediately	$ 21.68
3	WP89503		(alt.)   (Replaces: 366108)			Immediately	$ 21.68
4	3348662		Clip, Tubular		Appelez-nous	-
5	387402		Hinge, Console (2)				$ 5.84
6	3348108		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
14	3348564		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord To Rear Panel   (Replaces: 63848)				$ 11.64
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 49.57
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 7.04
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 76.37
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	WP98997		Clip, Water Level Hose To Rear Panel   (Replaces: 98997)				$ 9.98
36	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
37	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
39	3348287		Plate, Mixing Valve		Appelez-nous	-
40	3348661		Bracket, Top Lock		Appelez-nous	-
41	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
55	WP308685		Screw, Hinge To Rear Panel (10-16 X 1/2)   (Replaces: 3393008)			Immediately	$ 7.08
56	693216		Terminal, Ring		Appelez-nous	-
61	303294		Edge Protector		Appelez-nous	-
67	3355999		Harness, Timer (includes Illus. 68 Thru 71)		Appelez-nous	-
68	W10876590		Block, Timer Disconnect   (Replaces: 352089)				$ 11.48
69	94696		Plug (12 Way)		Appelez-nous	-
70	3347731		Connector		Appelez-nous	-
71	352457		Plug, 6-way		Appelez-nous	-
