01 - Cavity

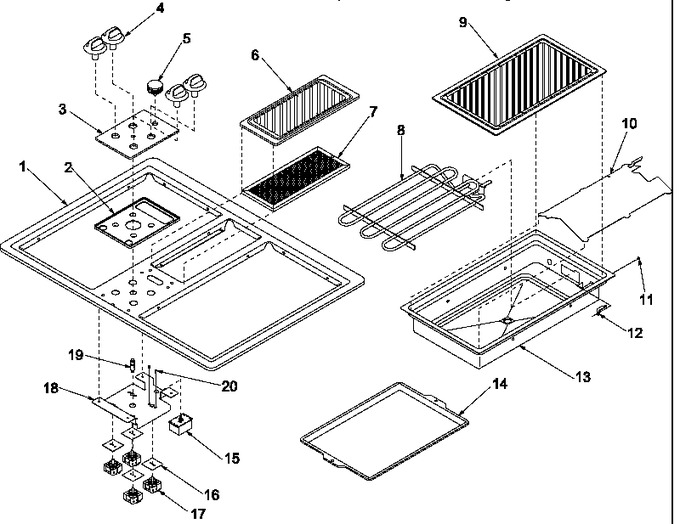

02 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31753002B | Main Top, 30`` Dd Cooktop (blk) |
|
- | |||||
| 2 | 315725B | Frame-glass Control Panel(blk) |
|
- | |||||
| 3 | 315690B | Glass, Control Panel (blk) |
|
- | |||||
| 4 | 315679B | Knob, Infinite Sw (black) |
|
- | |||||
| 5 | 31704803B | Knob, Fan Switch |
|
- | |||||
| 6 | 315693G | Cover, Vent Elec (casting) |
|
- | |||||
| 7 | 315689B | Filter, Exhaust (blk) |
|
- | |||||
| 8 | Y0316784 | Element, Low Smk Grille |
|
- | |||||
| 9 | 315692G | Grille, Low Smk Elec (casting) |
|
- | |||||
| 10 | 317088CG | Insert, Griddle (w/strike) |
|
- | |||||
| 11 | Y0041785 | Screw, No.6-32 X .250 Pan Hd Ph |
|
- | |||||
| 12 | Y0315593 | Strike, Grille Pan |
|
- | |||||
| 13 | 316488CG | Pan, Grille |
|
- | |||||
| 14 | Y0042724 | Pan, Grease Kgt591 |
|
- | |||||
| 15 | Y0316913 | Control, Fan Speed Variable |
|
$ 104.04 | |||||
| 16 | Y0041991 | Switch Gasket Xet-490 |
|
- | |||||
| 17 | WP74011243 | Switch, Infinite (Replaces: Y0315563) |
|
$ 115.88 | |||||
| 18 | Y0315723 | Brkt, Switch Mtg |
|
- | |||||
| 19 | Y0316314 | Light, Indicator (red) |
|
- | |||||
| 20 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| NI | 31726301 | Shield, Switch-variable |
|
- |
