Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N\A Shield,rotisserie Heat Appelez-nous -
2 0042747 Skewer Appelez-nous -
3 0040974 Motor Mtg Blkt Xst310 Appelez-nous -
4 Y0301074 Rotisserie Motor Appelez-nous -
5 0041770 Screw 1/4 20x1/2 Thumb Appelez-nous -
6 302713J Spit Appelez-nous -
7 0042721 Rotiss Rack Xst310 Appelez-nous -
8 0302714 Handle Appelez-nous -
NI 31743401 Inst.instr-griddle/rotisserie Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

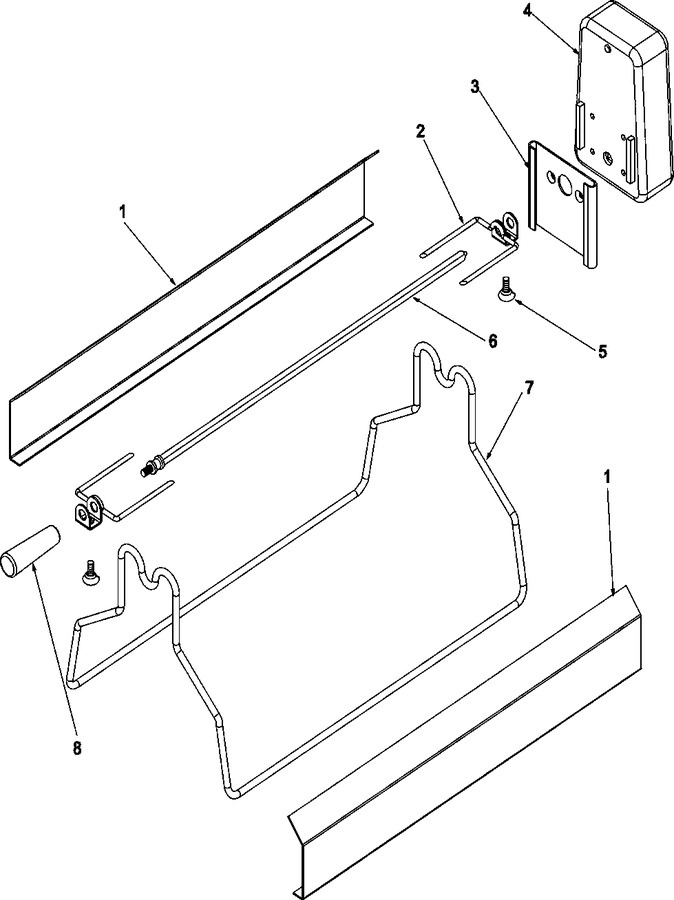

Diagram for AKES3060WW (BOM: P1131752NWW)
