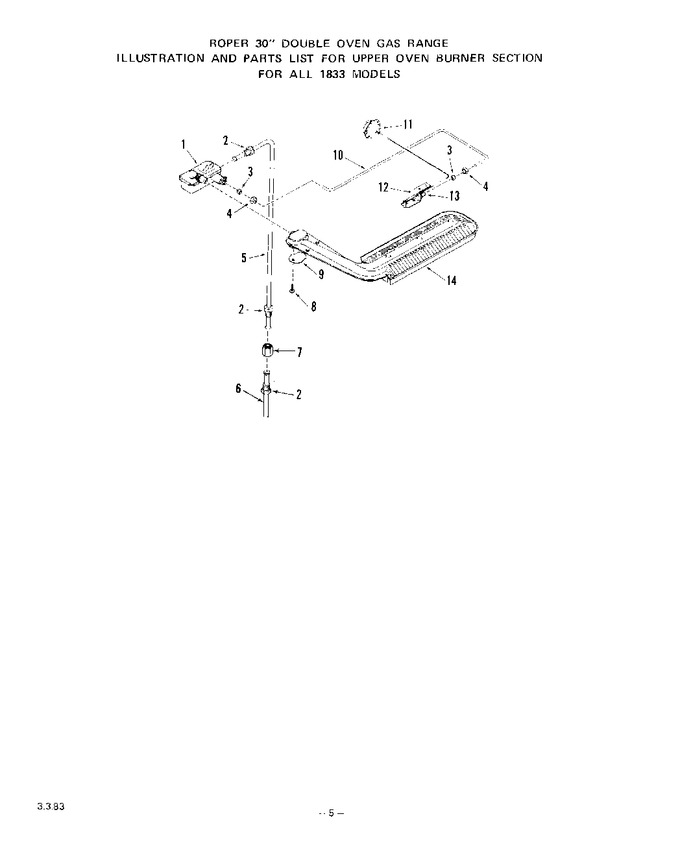

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	293796		Control Valve		Appelez-nous	-
2	113384		Inverted Nut 3/8``		Appelez-nous	-
3	65711		Compression Ball Sleeve 3/16``				$ 6.30
4	65712		Compression Nut 3/16``		Appelez-nous	-
5	295037		Tubing 3/8`` (union To Control Valve)		Appelez-nous	-
6	324521		Tubing 3/8`` (shut-off Valve To Union)		Appelez-nous	-
7	113372		Union Connector 3/8``		Appelez-nous	-
8	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
9	323455		Air Shutter		Appelez-nous	-
10	277370		Tubing 3/16`` (control Valve To Flame Switch)		Appelez-nous	-
11	281285		Flame Switch Only		Appelez-nous	-
12	295946		Pilot & Bracket Only		Appelez-nous	-
13	281441		Orifice Cup Only		Appelez-nous	-
14	311323		Oven Burner		Appelez-nous	-
